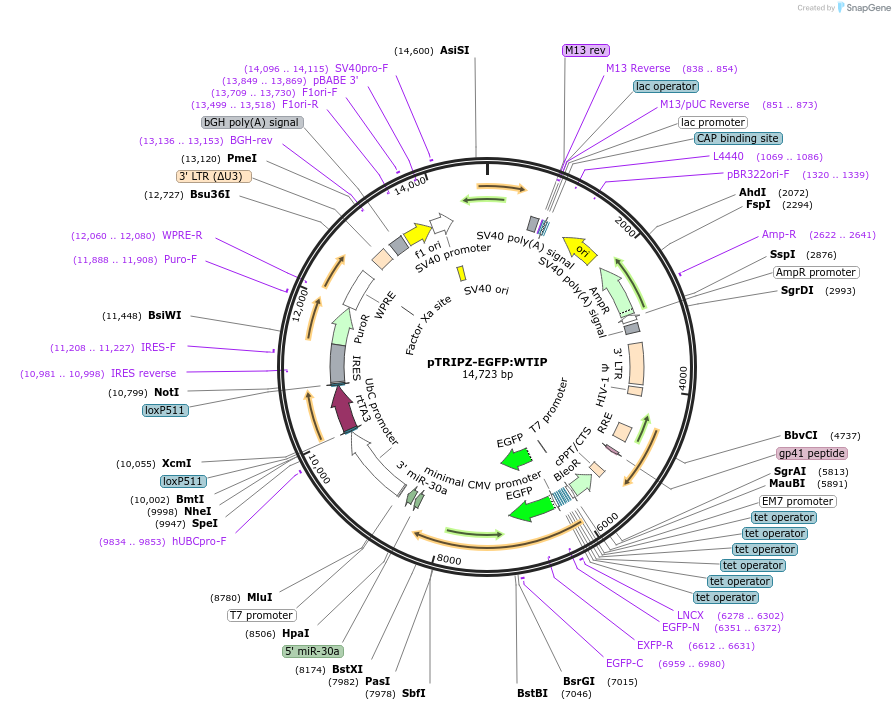

pTRIPZ-EGFP:WTIP
(Plasmid #108231)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 108231 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pTRIPZ
  • Backbone manufacturer
    GE Healthcare
  • Backbone size w/o insert (bp) 13320
  • Total vector size (bp) 14724
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    WTIP
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2148
  • GenBank ID
    NM_001080436.1
  • Entrez Gene
    WTIP
  • Promoter Tet/ON Minimal CMV promoter
  • Tag / Fusion Protein
    • EGFP

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GAACCGTCAGATCGCAATGGTGAGCAAGGGCGAG
  • 3′ sequencing primer CCTCATTCAAACAAACTATTAAAGCAAGTAAAACCTCTACAAATGTG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note that due to a cloning artifact, the amino acids SLDN were added to the C-terminus of WTIP. The construct will function as described in the associated publication.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTRIPZ-EGFP:WTIP was a gift from Kenneth Irvine (Addgene plasmid # 108231 ; http://n2t.net/addgene:108231 ; RRID:Addgene_108231)
  • For your References section:

    Tension-dependent regulation of mammalian Hippo signaling through LIMD1. Ibar C, Kirichenko E, Keepers B, Enners E, Fleisch K, Irvine KD. J Cell Sci. 2018 Feb 13. pii: jcs.214700. doi: 10.1242/jcs.214700. 10.1242/jcs.214700 PubMed 29440237
