DEP-GFP
(Plasmid
#109043)
-
PurposeExpression of the Dishevelled DEP domain
-
Depositing Lab
-
Depositing OrganizationMRC Laboratory of Molecular Biology
Located in United Kingdom of Great Britain and Northern Ireland -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 109043 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 109043-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 109043-D100 | 100 μg of DNA in Tris buffer | $585 | ||

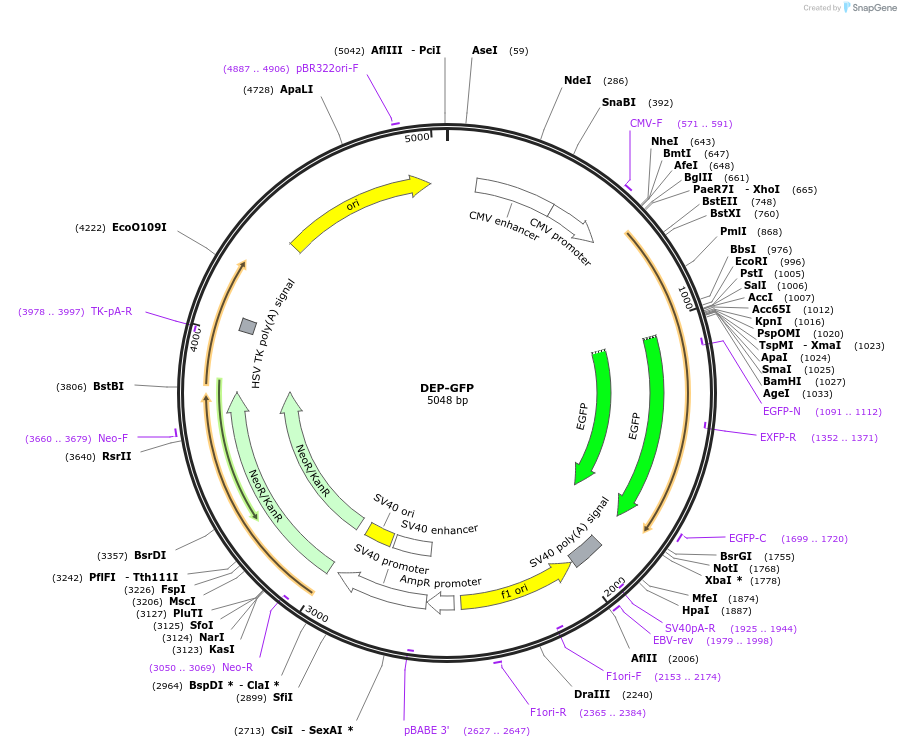

Backbone
-
Vector backbonepEGFP-N1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 4700
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namedishevelled segment polarity protein 2
-
SpeciesH. sapiens (human)
-
MutationDvl2 DEP domain
-
Entrez GeneDVL2
- Promoter CMV
-
Tag
/ Fusion Protein
- GFP (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV-F
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byDvl2-GFP was provided by Trevor Dale (Cardiff), who published the construction of this plasmid in 1999 (Smalley et al, EMBO J; PMID: 10329628)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 109043-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 109043-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
DEP-GFP was a gift from Mariann Bienz (Addgene plasmid # 109043 ; http://n2t.net/addgene:109043 ; RRID:Addgene_109043) -
For your References section:
Wnt Signalosome Assembly by DEP Domain Swapping of Dishevelled. Gammons MV, Renko M, Johnson CM, Rutherford TJ, Bienz M. Mol Cell. 2016 Oct 6;64(1):92-104. doi: 10.1016/j.molcel.2016.08.026. Epub 2016 Sep 29. 10.1016/j.molcel.2016.08.026 PubMed 27692984
