pmIL-6promoterEGFP
(Plasmid
#112896)
-
PurposeTo monitor the activation of the murine IL-6 promoter by eGFP expression
-
Depositing Lab
-
Depositing OrganizationUniversity of Texas Southwestern Medical Center
Located in the United States of America -
Citations
-

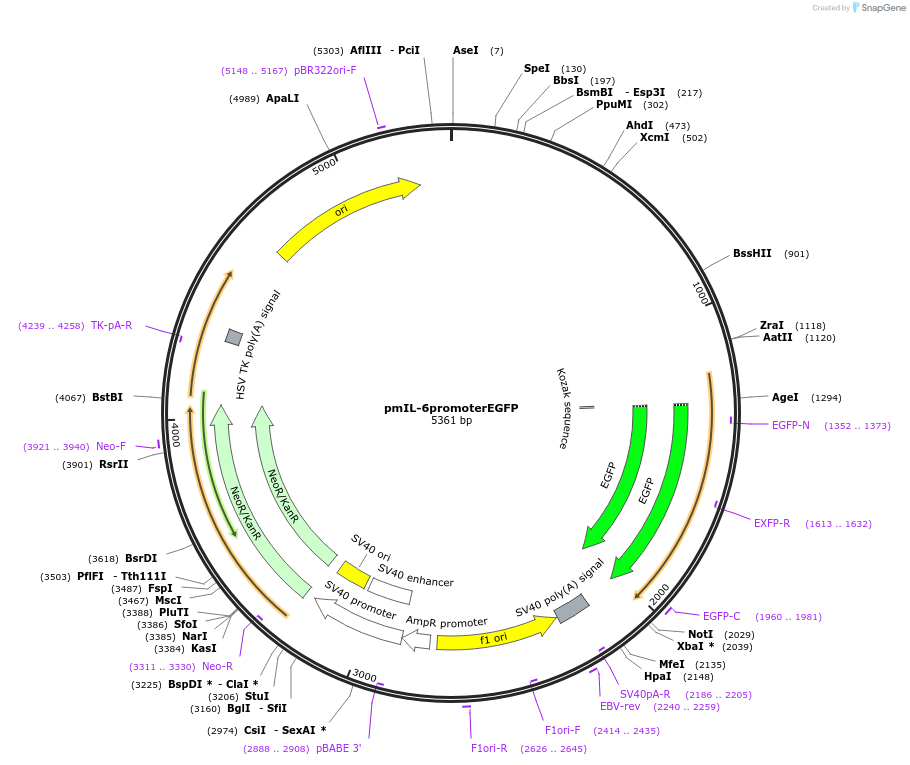

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 112896 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 112896-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 112896-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFPN1
-
Backbone manufacturerclontech
- Backbone size w/o insert (bp) 4000
- Total vector size (bp) 5300
-
Modifications to backboneremoved existing promoter region and added new one
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert namemurine IL-6 promoter
-
Alt nameIL6p
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)1300
-
Entrez GeneIl6 (a.k.a. Il-6)
- Promoter IL-6 promoter
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Ase I (not destroyed)
- 3′ cloning site Age I (not destroyed)
- 5′ sequencing primer pEGFPN sequencing
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 112896-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 112896-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pmIL-6promoterEGFP was a gift from Nicolai van Oers (Addgene plasmid # 112896 ; http://n2t.net/addgene:112896 ; RRID:Addgene_112896) -
For your References section:
Mycobacterial shuttle vectors designed for high-level protein expression in infected macrophages. Eitson JL, Medeiros JJ, Hoover AR, Srivastava S, Roybal KT, Ainsa JA, Hansen EJ, Gumbo T, van Oers NS. Appl Environ Microbiol. 2012 Oct;78(19):6829-37. doi: 10.1128/AEM.01674-12. Epub 2012 Jul 20. 10.1128/AEM.01674-12 PubMed 22820329
