pEBTet_NADP-Snifit-mito
(Plasmid #113919)

• Purpose: Plasmid encoding the mitochondrial localization of the FRET semi-synthetic biosensor measuring the ratio NADPH/NADP+ in mammalian cells
• Depositing Lab: Kai Johnsson
• Depositing Organization: Max Planck Institute for Medical Research
  Located in Germany
• Publication: Sallin et al eLife. 2018 May 29;7. pii: 32638. doi: 10.7554/eLife.32638.

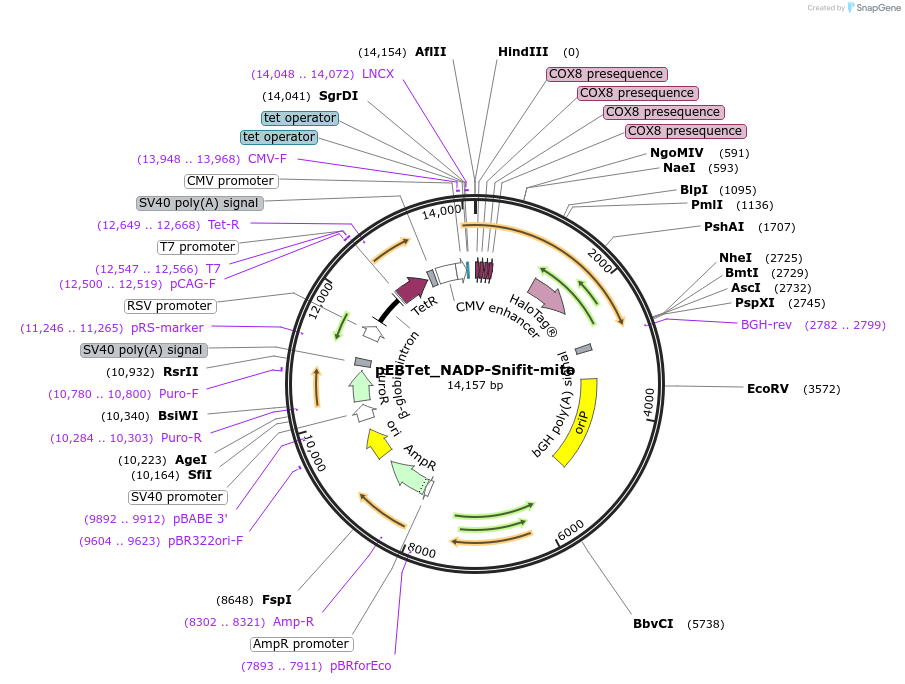

Backbone

• Vector backbone: pEBTet
• Backbone size w/o insert (bp): 11448
• Total vector size (bp): 14257
• Vector type: Mammalian Expression
• Selectable markers: Puromycin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: NADP-Snifit
• Alt name: hSPR-HaloTag7-Pro30-SNAPtag
• Species: Synthetic
• Insert Size (bp): 2349
• Promoter: CMV TetO2

Cloning Information

• Cloning method: Gibson Cloning
• 5′ sequencing primer: CMV_Fwd
• 3′ sequencing primer: BGH_Rev

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • HaloTag Vector Limited Use Label License
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Plasmid contains some differences in the oriP backbone sequence compared to the depositor sequence. These differences are not known to affect plasmid function.

DNA (Catalog # 113919-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • HaloTag Vector Limited Use Label License
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 113919-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • HaloTag Vector Limited Use Label License
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
