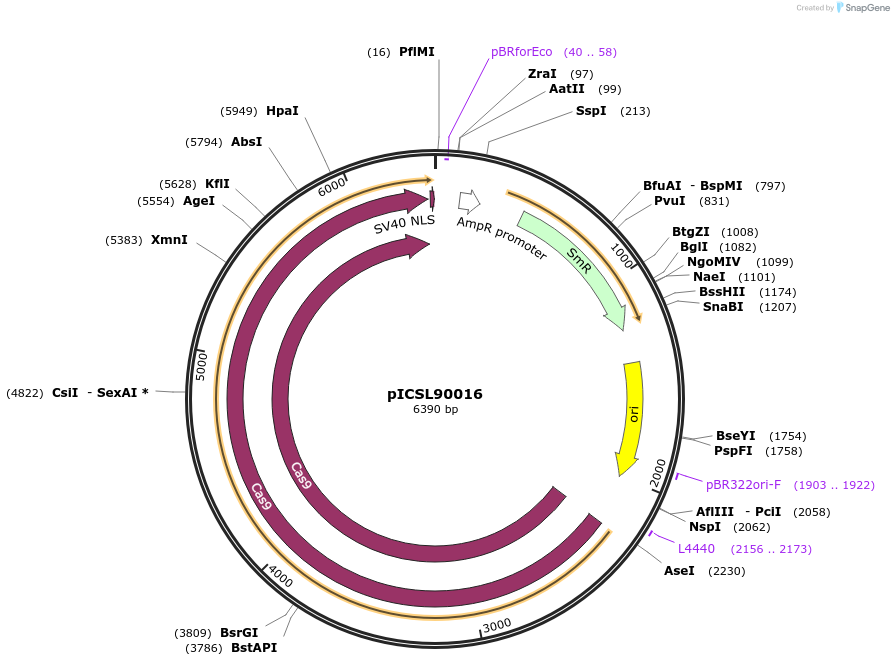

pICSL90016
(Plasmid #117514)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 117514 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pICH41308
  • Backbone size w/o insert (bp) 2247
  • Total vector size (bp) 6388
  • Vector type
    Plant Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    BsaI:AATG:Cas9_2:GCTT:BsaI
  • Species
    Synthetic
  • Insert Size (bp)
    4141
  • Tag / Fusion Protein
    • NLS_SV40 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsaI (not destroyed)
  • 3′ cloning site BsaI (not destroyed)
  • 5′ sequencing primer CGTTATCCCCTGATTCTGTGGATAAC
  • 3′ sequencing primer GTCTCATGAGCGGATACATATTTGAATG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Cloned by Oleg Raitskin . Please visit https://www.biorxiv.org/content/early/2018/09/17/419952 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pICSL90016 was a gift from Jonathan D Jones (Addgene plasmid # 117514 ; http://n2t.net/addgene:117514 ; RRID:Addgene_117514)
  • For your References section:

    Optimization of T-DNA architecture for Cas9-mediated mutagenesis in Arabidopsis. Castel B, Tomlinson L, Locci F, Yang Y, Jones JDG. PLoS One. 2019 Jan 9;14(1):e0204778. doi: 10.1371/journal.pone.0204778. eCollection 2019. 10.1371/journal.pone.0204778 PubMed 30625150
