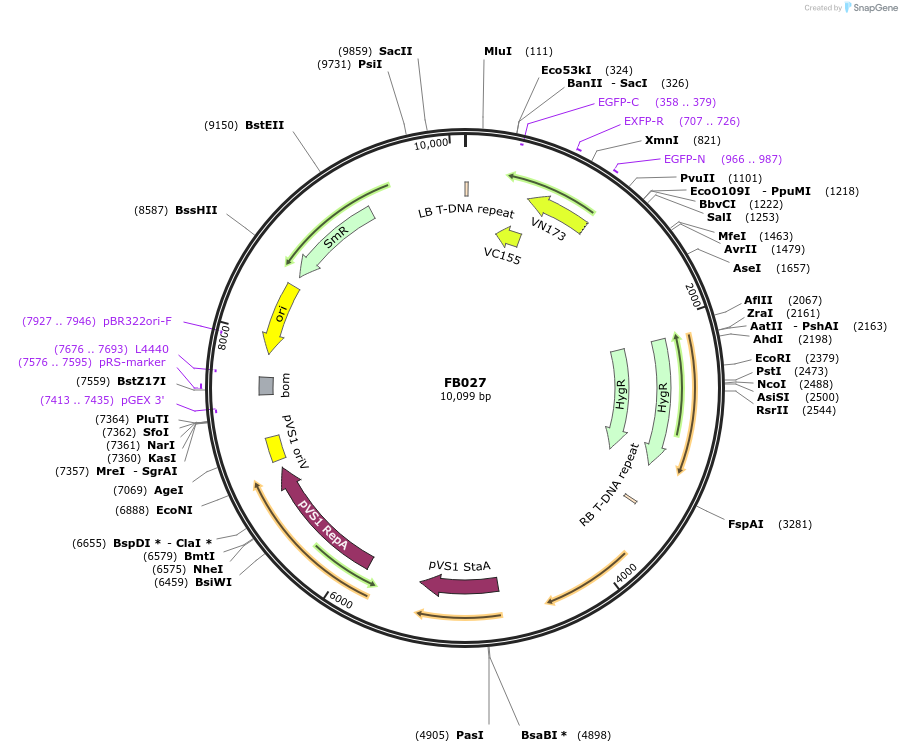

FB027
(Plasmid
#119712)
-
PurposeMultipartite assembly obtained by combining FB parts FB026+FB003 into pDGB3omega1. Used for fluorescent tagging of fungi (Hyg resistance +YFP) according to FungalBraid modular DNA assembly for ATMT
-
Depositing Lab
-
Depositing OrganizationAgencia Estatal Consejo Superior de Investigaciones Científicas, M.P.
Located in Spain -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 119712 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 119712-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 119712-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonePDGB3omega1
-
Backbone manufacturerDiego Orzaez
- Backbone size w/o insert (bp) 7295
- Total vector size (bp) 10106
-
Vector typeSynthetic Biology
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Spectinomycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePgpdA::YFP::TtrpC(←)-PtrpC::hph::Ttub (→)
-
Alt nameFB026+FB003
-
Insert Size (bp)3392
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmB1 (destroyed during cloning)
- 3′ cloning site BsmB1 (destroyed during cloning)
- 5′ sequencing primer CGAGTGGTGATTTTGTGCCG
- 3′ sequencing primer CCCGCCAATATATCCTGTCAG
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 119712-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 119712-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
FB027 was a gift from Jose Marcos (Addgene plasmid # 119712 ; http://n2t.net/addgene:119712 ; RRID:Addgene_119712) -
For your References section:
FungalBraid: A GoldenBraid-based modular cloning platform for the assembly and exchange of DNA elements tailored to fungal synthetic biology. Hernanz-Koers M, Gandia M, Garrigues S, Manzanares P, Yenush L, Orzaez D, Marcos JF. Fungal Genet Biol. 2018 Jul;116:51-61. doi: 10.1016/j.fgb.2018.04.010. Epub 2018 Apr 20. 10.1016/j.fgb.2018.04.010 PubMed 29680684
