pcDNA-h-mmPtch1-B-L235C-HA
(Plasmid
#120906)
-
PurposeExpresses mmPtch1-B (L235C)
-
Depositing Lab
-
Depositing OrganizationStanford University
Located in United States of America -

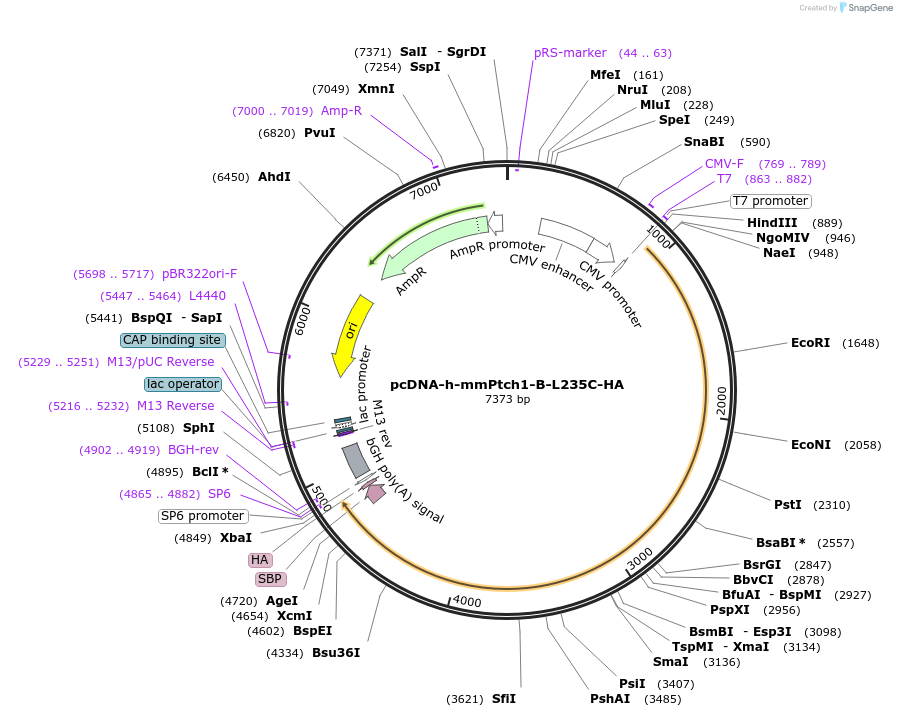

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 120906 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 120906-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 120906-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA-h
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePtch1
-
SpeciesM. musculus (mouse)
-
Mutationdeleted amino acids 620-643, truncated at 1291, L235C
-
GenBank IDNM_008957.3
-
Entrez GenePtch1 (a.k.a. A230106A15Rik, Ptc, Ptc1, Ptch, mes, wig)
- Promoter CMV
-
Tag
/ Fusion Protein
- HA (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer SP6
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 120906-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 120906-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA-h-mmPtch1-B-L235C-HA was a gift from Philip Beachy (Addgene plasmid # 120906 ; http://n2t.net/addgene:120906 ; RRID:Addgene_120906) -
For your References section:
Structural Basis for Cholesterol Transport-like Activity of the Hedgehog Receptor Patched. Zhang Y, Bulkley DP, Xin Y, Roberts KJ, Asarnow DE, Sharma A, Myers BR, Cho W, Cheng Y, Beachy PA. Cell. 2018 Nov 15;175(5):1352-1364.e14. doi: 10.1016/j.cell.2018.10.026. Epub 2018 Nov 8. 10.1016/j.cell.2018.10.026 PubMed 30415841
