pTV-Met-Eif4a1-tdiRFP670-PEST
(Plasmid
#122371)
-
PurposeTargeting vector for mouse Eif4a1 to insert 2A-tdiRFP670-PEST-2A into immediately downstream of start codon.
-
Depositing Lab
-
Depositing OrganizationHiroshima University
Located in Japan -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 122371 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 122371-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 122371-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepBSK
- Backbone size w/o insert (bp) 2850
- Total vector size (bp) 7159
-
Vector typeMouse Targeting
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert name2A-tdiRFP-PEST-2A with homology arms for Eif4a1
-
SpeciesSynthetic
-
Insert Size (bp)4309
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer M13-fwr
- 3′ sequencing primer M13-rev
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 122371-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 122371-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTV-Met-Eif4a1-tdiRFP670-PEST was a gift from Hiroshi Ochiai (Addgene plasmid # 122371 ; http://n2t.net/addgene:122371 ; RRID:Addgene_122371) -
For your References section:
Genome-wide kinetic properties of transcriptional bursting in mouse embryonic stem cells. Ochiai H, Hayashi T, Umeda M, Yoshimura M, Harada A, Shimizu Y, Nakano K, Saitoh N, Liu Z, Yamamoto T, Okamura T, Ohkawa Y, Kimura H, Nikaido I. Sci Adv. 2020 Jun 17;6(25):eaaz6699. doi: 10.1126/sciadv.aaz6699. eCollection 2020 Jun. 10.1126/sciadv.aaz6699 PubMed 32596448

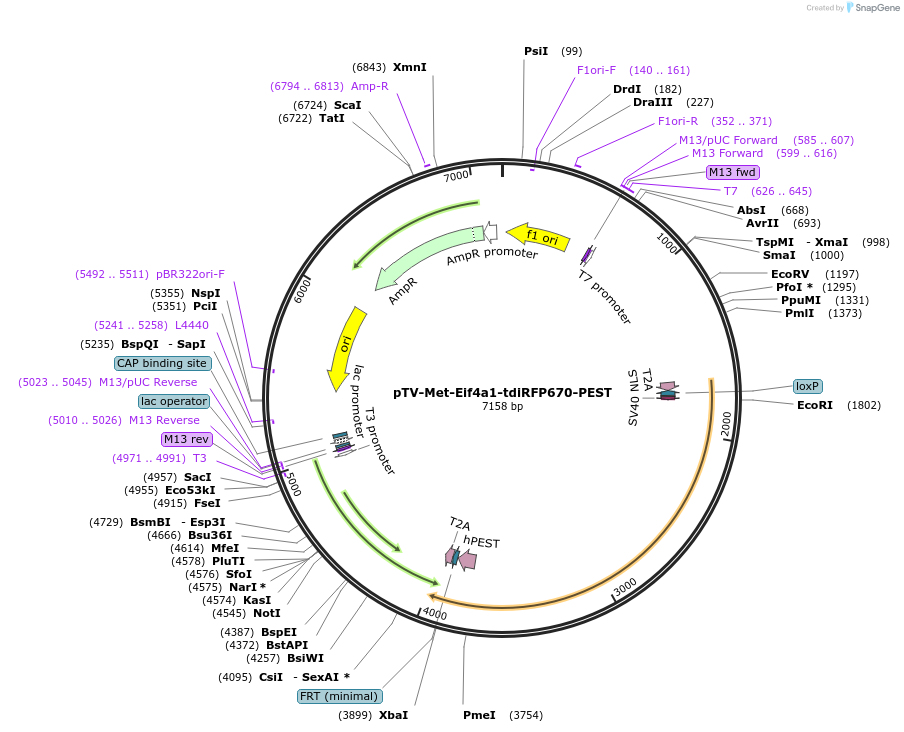

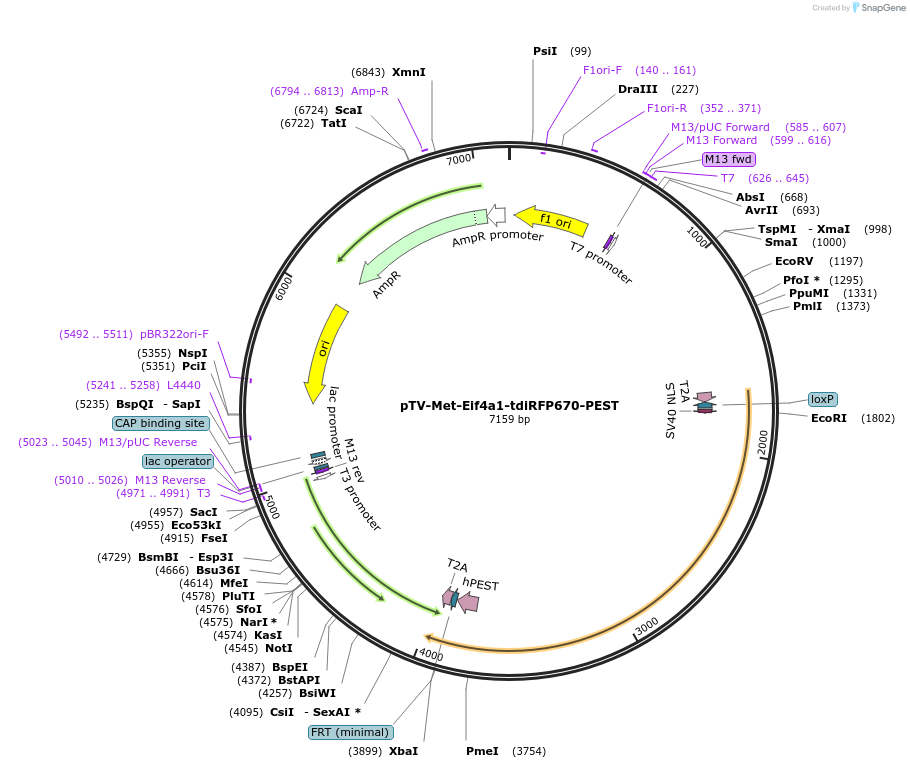

Map uploaded by the depositor.
