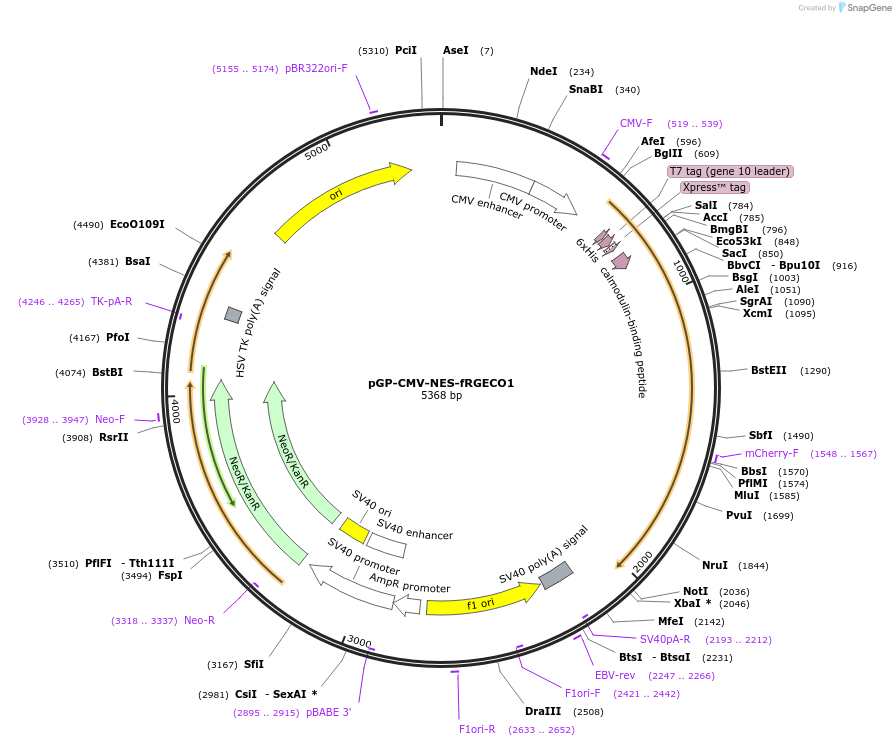

pGP-CMV-NES-fRGECO1
(Plasmid #125247)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 125247 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3955
  • Total vector size (bp) 5368
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    fRGECO2
  • Alt name
    jRGECO1a RS-1 EF-4
  • Species
    R. norvegicus (rat), G. gallus (chicken); Discosoma sp. (Sea anemone)
  • Insert Size (bp)
    1413
  • Tag / Fusion Protein
    • NES signal

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Addgene #61563

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

fRGECO1 is the D323A variant of the jRGECO1a gene cloned from the pGP-CMV vector (#61563) published by Dana et al. 2016.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGP-CMV-NES-fRGECO1 was a gift from Katalin Torok (Addgene plasmid # 125247 ; http://n2t.net/addgene:125247 ; RRID:Addgene_125247)
  • For your References section:

    The kinetic mechanisms of fast-decay red-fluorescent genetically encoded calcium indicators. Kerruth S, Coates C, Durst CD, Oertner TG, Torok K. J Biol Chem. 2019 Mar 15;294(11):3934-3946. doi: 10.1074/jbc.RA118.004543. Epub 2019 Jan 16. 10.1074/jbc.RA118.004543 PubMed 30651353
