pGP-CMV-NEW-fRGECO2
(Plasmid
#125248)
-
PurposeExpresses red fluorescent calcium sensor in mammalian cells
-
Depositing Lab
-
Depositing OrganizationCity, University of London
Located in the United Kingdom of Great Britain and Northern Ireland -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 125248 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 125248-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 125248-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFP-N1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 3955
- Total vector size (bp) 5368
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namefRGECO2
-
Alt namejRGECO1a RS-1 EF-4
-
SpeciesR. norvegicus (rat), G. gallus (chicken); Discosoma sp. (Sea anemone)
-
Insert Size (bp)1413
- Promoter CMV
-
Tag
/ Fusion Protein
- NES signal
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BglII (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer CMV
- 3′ sequencing primer SV40p
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byAddgene #61563
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
fRGECO2 is the W44Y, D432A variant of the jRGECO1a gene cloned from the pGP-CMV vector (#61563) published by Dana et al. 2016.
DNA (Catalog # 125248-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 125248-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pGP-CMV-NEW-fRGECO2 was a gift from Katalin Torok (Addgene plasmid # 125248 ; http://n2t.net/addgene:125248 ; RRID:Addgene_125248) -
For your References section:
The kinetic mechanisms of fast-decay red-fluorescent genetically encoded calcium indicators. Kerruth S, Coates C, Durst CD, Oertner TG, Torok K. J Biol Chem. 2019 Mar 15;294(11):3934-3946. doi: 10.1074/jbc.RA118.004543. Epub 2019 Jan 16. 10.1074/jbc.RA118.004543 PubMed 30651353

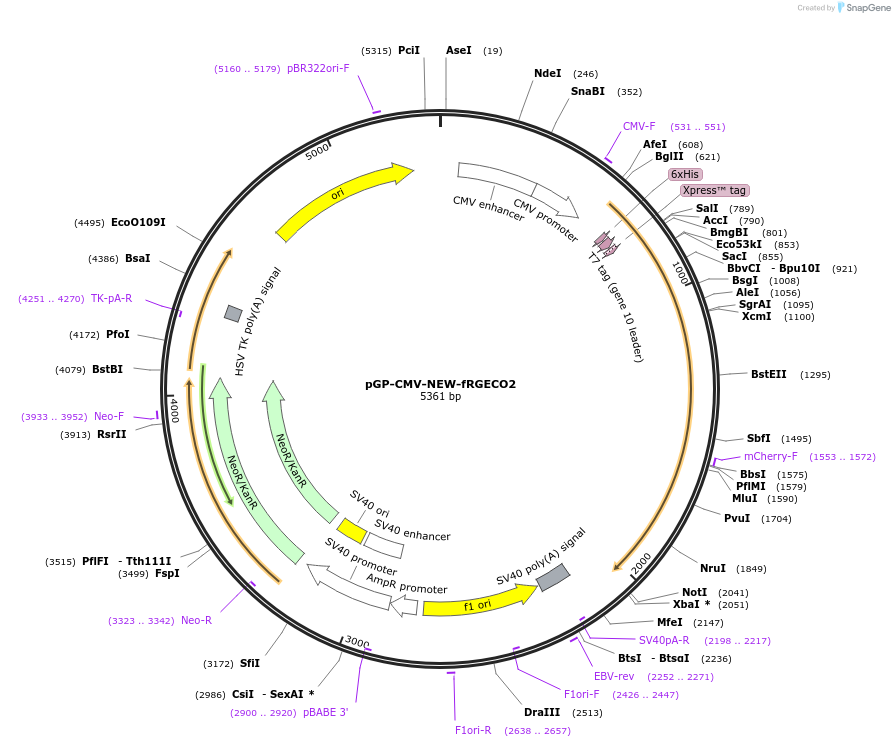

Map uploaded by the depositor.
