Purposegreen fluorescent glucose sensor for mammalian cells
-
Depositing Lab
-
Depositing OrganizationTokyo Institute of Technology (Inactive)
Located in Japan -
Citations
-

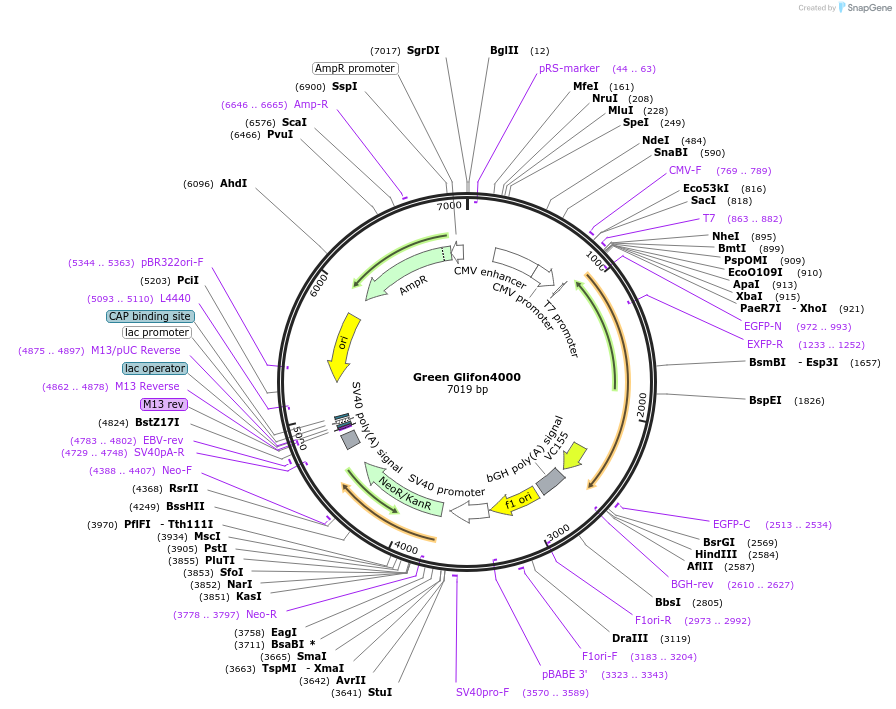

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 126208 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 126208-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 126208-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3.1(-)
- Backbone size w/o insert (bp) 5400
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameGreen Glifon4000
-
Insert Size (bp)1700
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 126208-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 126208-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Green Glifon4000 was a gift from Tetsuya Kitaguchi (Addgene plasmid # 126208 ; http://n2t.net/addgene:126208 ; RRID:Addgene_126208) -
For your References section:
Green Fluorescent Protein-Based Glucose Indicators Report Glucose Dynamics in Living Cells. Mita M, Ito M, Harada K, Sugawara I, Ueda H, Tsuboi T, Kitaguchi T. Anal Chem. 2019 Apr 2;91(7):4821-4830. doi: 10.1021/acs.analchem.9b00447. Epub 2019 Mar 22. 10.1021/acs.analchem.9b00447 PubMed 30869867
