pIRES2-smGFP-Kv2.1
(Plasmid
#131709)
-
PurposeExpresses Kv2.1 in mammalian cells
-
Depositing Lab
-
Depositing OrganizationNorthwestern University
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 131709 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 131709-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 131709-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepIRES2-DsRed-Express
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 5300
- Total vector size (bp) 7982
-
Modifications to backboneDsRed-Express was replaced with smGFP by Gibson Assembly
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameKCNB1
-
Alt namepotassium voltage-gated channel subfamily B member 1
-
Alt nameKv2.1
-
SpeciesH. sapiens (human)
-
GenBank IDNM_004975
-
Entrez GeneKCNB1 (a.k.a. DRK1, Kv2.1)
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site SalI (destroyed during cloning)
- 3′ cloning site NheI (destroyed during cloning)
- 5′ sequencing primer CMV_fwd_primer
- 3′ sequencing primer dsRed1_N_primer
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 131709-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 131709-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pIRES2-smGFP-Kv2.1 was a gift from Jennifer Kearney (Addgene plasmid # 131709 ; http://n2t.net/addgene:131709 ; RRID:Addgene_131709) -
For your References section:
Spectrum of KV 2.1 Dysfunction in KCNB1-Associated Neurodevelopmental Disorders. Kang SK, Vanoye CG, Misra SN, Echevarria DM, Calhoun JD, O'Connor JB, Fabre KL, McKnight D, Demmer L, Goldenberg P, Grote LE, Thiffault I, Saunders C, Strauss KA, Torkamani A, van der Smagt J, van Gassen K, Carson RP, Diaz J, Leon E, Jacher JE, Hannibal MC, Litwin J, Friedman NR, Schreiber A, Lynch B, Poduri A, Marsh ED, Goldberg EM, Millichap JJ, George AL Jr, Kearney JA. Ann Neurol. 2019 Dec;86(6):899-912. doi: 10.1002/ana.25607. Epub 2019 Oct 24. 10.1002/ana.25607 PubMed 31600826
Ready-to-use antibodies
Looking for antibodies related to this plasmid? Check out these options:
Learn More

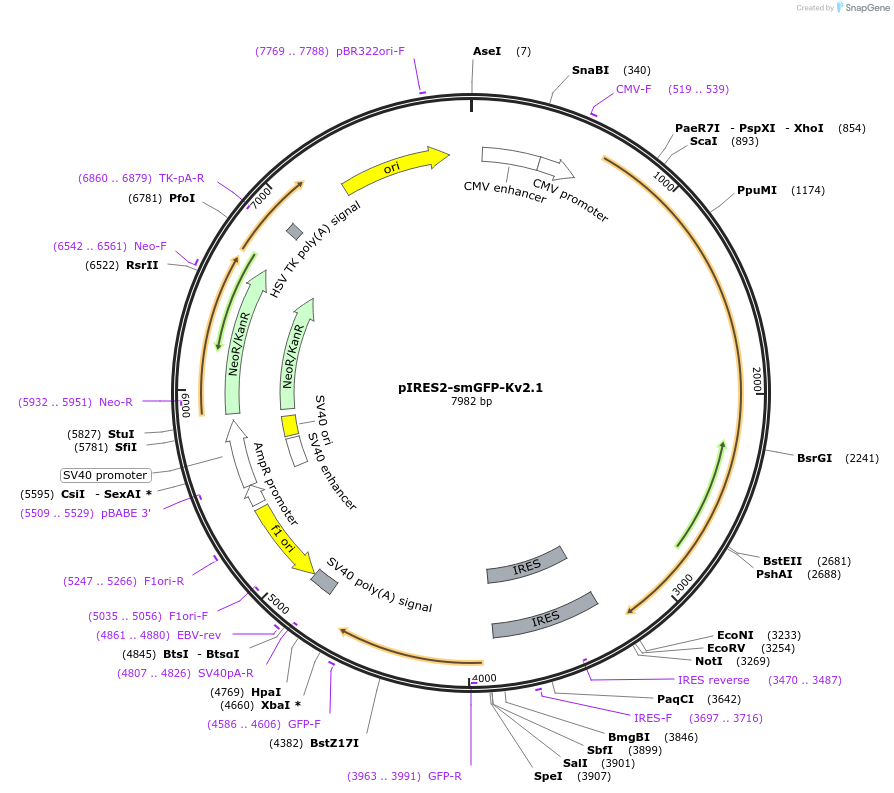

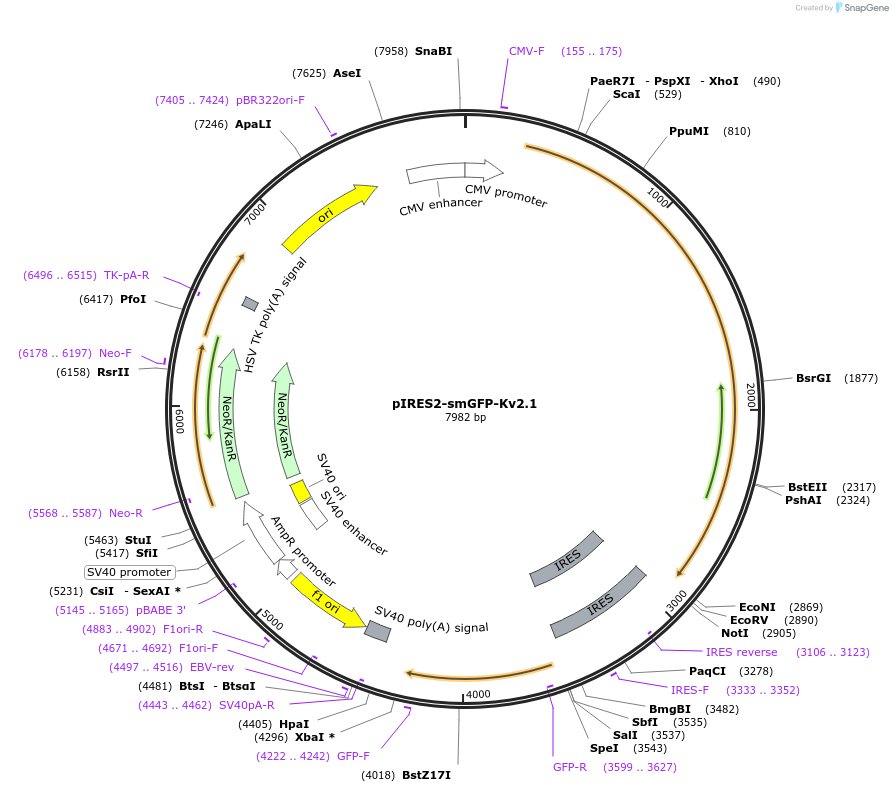

Map uploaded by the depositor.
