(Plasmid #136511)


Item Catalog # Description Quantity Price (USD)
Plasmid 136511 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

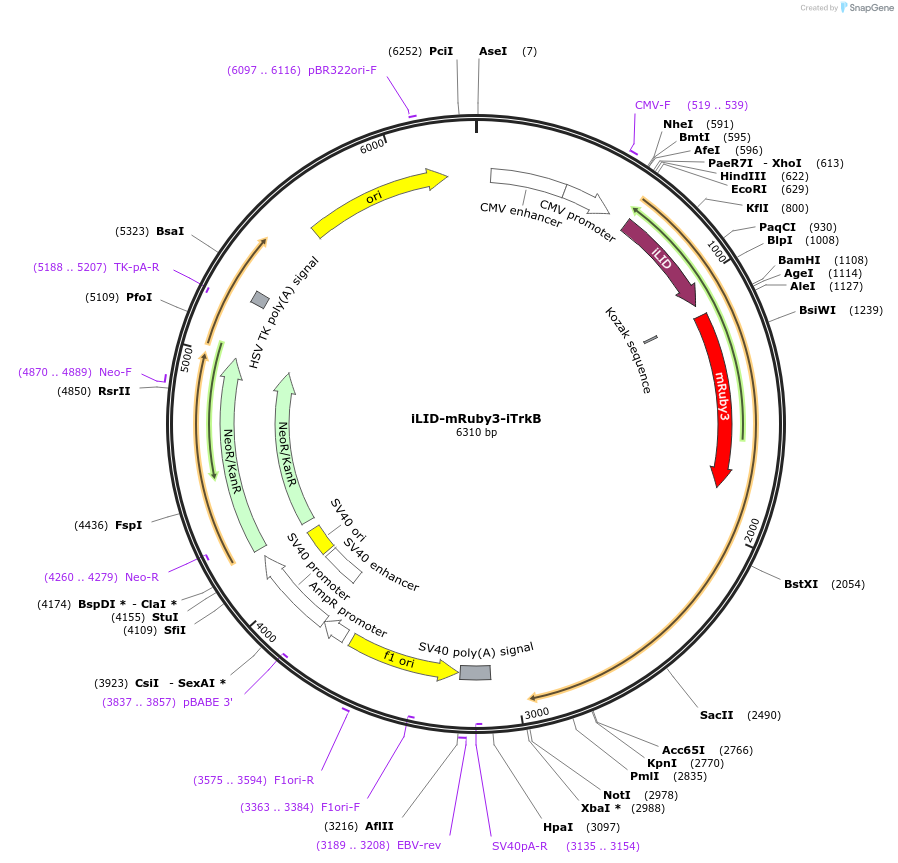

  • Vector backbone
    pEGFP N1
  • Backbone size w/o insert (bp) 3900
  • Total vector size (bp) 6300
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number


  • Gene/Insert name
    iLID mRuby3 iTrkB
  • Alt name
  • Species
    H. sapiens (human); Avena sativa
  • Insert Size (bp)
  • Promoter CMV

Cloning Information

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    iLID received from lab of Brian Kuhlman via Addgene (60411)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    iLID-mRuby3-iTrkB was a gift from Bianxiao Cui (Addgene plasmid # 136511 ; ; RRID:Addgene_136511)
  • For your References section:

    Construction of Light-Activated Neurotrophin Receptors Using the Improved Light-Induced Dimerizer (iLID). Hope JM, Liu A, Calvin GJ, Cui B. J Mol Biol. 2020 Jun 12;432(13):3739-3748. doi: 10.1016/j.jmb.2020.04.018. Epub 2020 Apr 23. 10.1016/j.jmb.2020.04.018 PubMed 32335036
