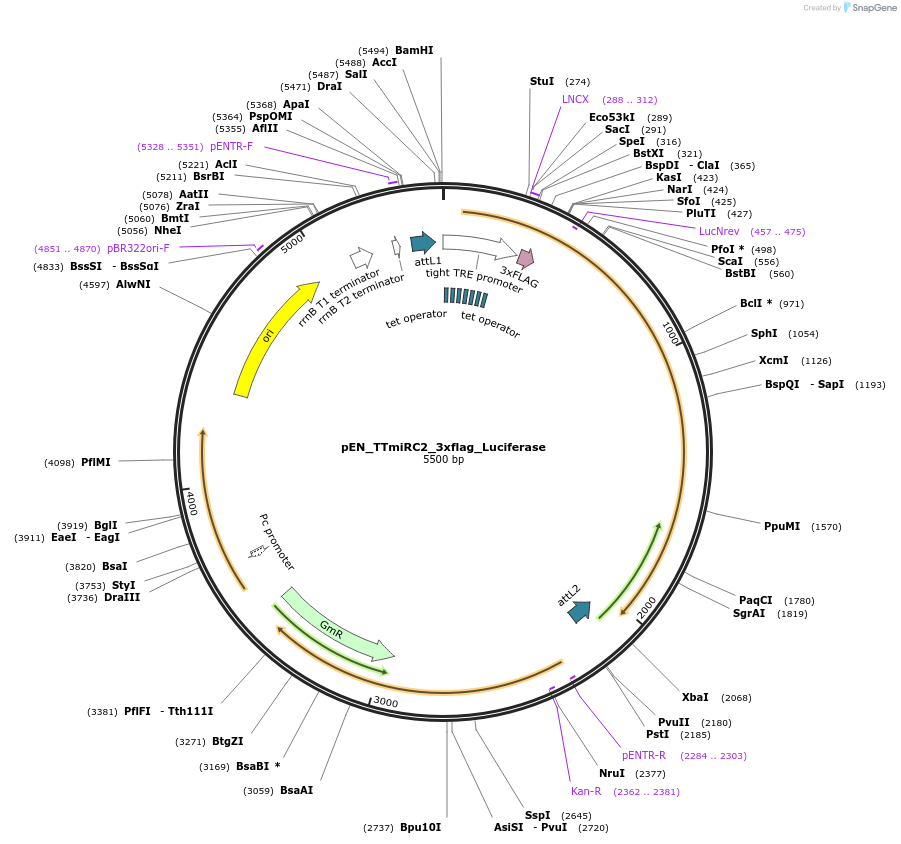

pEN_TTmiRC2_3xflag_Luciferase
(Plasmid #136519)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 136519 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEN_TTmiRc2
  • Backbone manufacturer
    Addgene #25752
  • Backbone size w/o insert (bp) 4422
  • Vector type
    entry vector for gateway cloning

Growth in Bacteria

  • Bacterial Resistance(s)
    Gentamicin, 10 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    ccdB Survival
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Luciferase
  • Insert Size (bp)
    1716
  • Tag / Fusion Protein
    • 3x FLAG (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SpeI (not destroyed)
  • 3′ cloning site MfeI (destroyed during cloning)
  • 5′ sequencing primer TGATAGAGAACGTATGTCGAGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEN_TTmiRC2_3xflag_Luciferase was a gift from Kevin Janes (Addgene plasmid # 136519 ; http://n2t.net/addgene:136519 ; RRID:Addgene_136519)
  • For your References section:

    Sporadic activation of an oxidative stress-dependent NRF2-p53 signaling network in breast epithelial spheroids and premalignancies. Pereira EJ, Burns JS, Lee CY, Marohl T, Calderon D, Wang L, Atkins KA, Wang CC, Janes KA. Sci Signal. 2020 Apr 14;13(627). pii: 13/627/eaba4200. doi: 10.1126/scisignal.aba4200. 10.1126/scisignal.aba4200 PubMed 32291314
