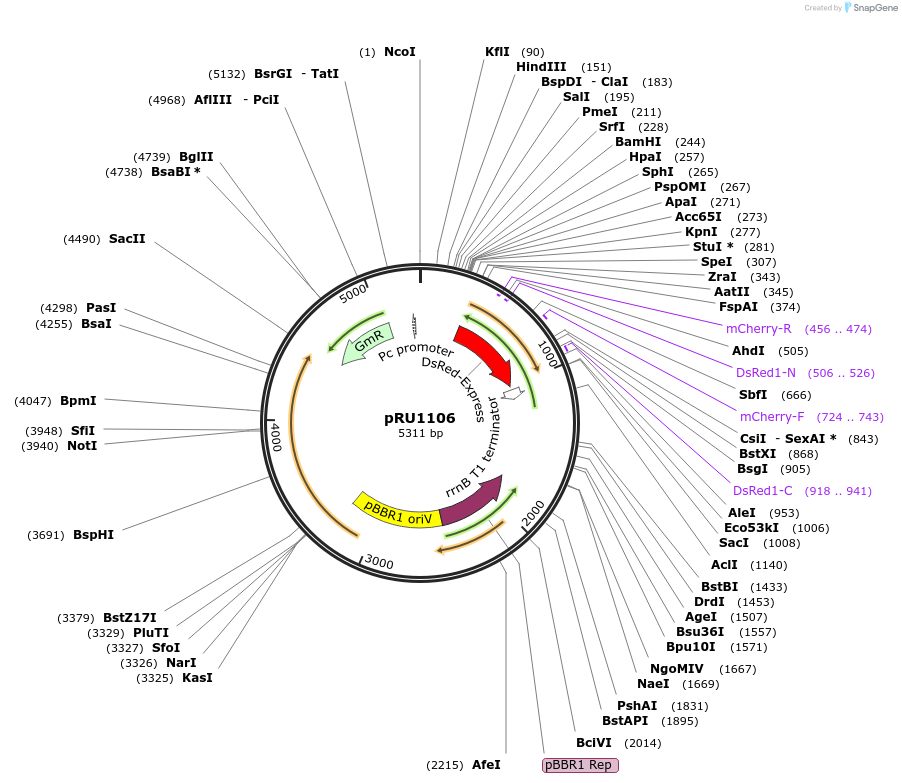

pRU1106
(Plasmid #14470)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 14470 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pbbr
  • Backbone size w/o insert (bp) 4500
  • Vector type
    Bacterial Expression
  • Selectable markers
    Gentamicin

Growth in Bacteria

  • Bacterial Resistance(s)
    Gentamicin, 10 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    DsRedT.4
  • Species
    Discoma
  • Insert Size (bp)
    678
  • GenBank ID
    aj851286

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SpeI (not destroyed)
  • 3′ cloning site SacI (not destroyed)
  • 5′ sequencing primer cggtttacaagcataaagc
  • 3′ sequencing primer TACTCATTTTTTCTTCCTCCACTAG
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Use gentamicin at 10 ug/mL.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRU1106 was a gift from Philip Poole (Addgene plasmid # 14470)
  • For your References section:

    A family of promoter probe vectors incorporating autofluorescent and chromogenic reporter proteins for studying gene expression in Gram-negative bacteria. Karunakaran R, Mauchline TH, Hosie AH, Poole PS. Microbiology. 2005 Oct . 151(Pt 10):3249-56. 10.1099/mic.0.28311-0 PubMed 16207908
