V45 pHIPPY PGL3 Luciferase
(Plasmid
#15099)
-
Depositing Lab
-
Depositing OrganizationUniversity of Washington
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 15099 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 15099-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 15099-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepHIPPY
-
Backbone manufacturerMoon Lab
- Backbone size w/o insert (bp) 2167
-
Vector typeMammalian Expression, RNAi
-
Selectable markersZeocin
Growth in Bacteria
-
Bacterial Resistance(s)Bleocin (Zeocin), 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePGL3 luciferase siRNA
-
Insert Size (bp)19
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmBI (destroyed during cloning)
- 3′ cloning site BsmBI (destroyed during cloning)
- 5′ sequencing primer H1 primer
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Inhibits the expression of PGL3 luciferase. Opposing human H1 and human U6 Pol III promoters drive expression of siRNAs
See article and author's map for more information. In the sequence link, the PGL3 luciferase siRNA is lower case.
Addgene QC Sanger sequencing did not identify BsmBI sites adjacent to the siRNA sequence.
DNA (Catalog # 15099-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 15099-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
V45 pHIPPY PGL3 Luciferase was a gift from Randall Moon (Addgene plasmid # 15099 ; http://n2t.net/addgene:15099 ; RRID:Addgene_15099) -
For your References section:
A plasmid-based system for expressing small interfering RNA libraries in mammalian cells. Kaykas A, Moon RT. BMC Cell Biol. 2004 Apr 30;5:16. doi: 10.1186/1471-2121-5-16. 10.1186/1471-2121-5-16 PubMed 15119963

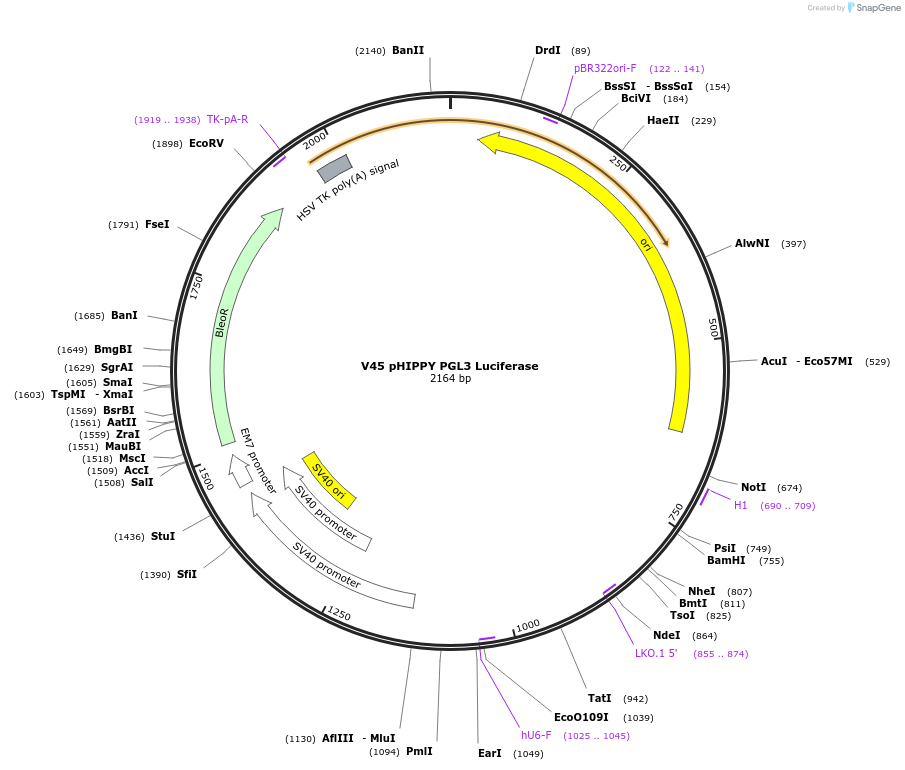

Map uploaded by the depositor.
