MPC020: CamKII CMV_NovArch_citrine
(Plasmid
#153193)
-
PurposeEncodes Novarch
-
Depositing Lab
-
Depositing OrganizationHarvard University
Located in the United States of America -
Citations
-

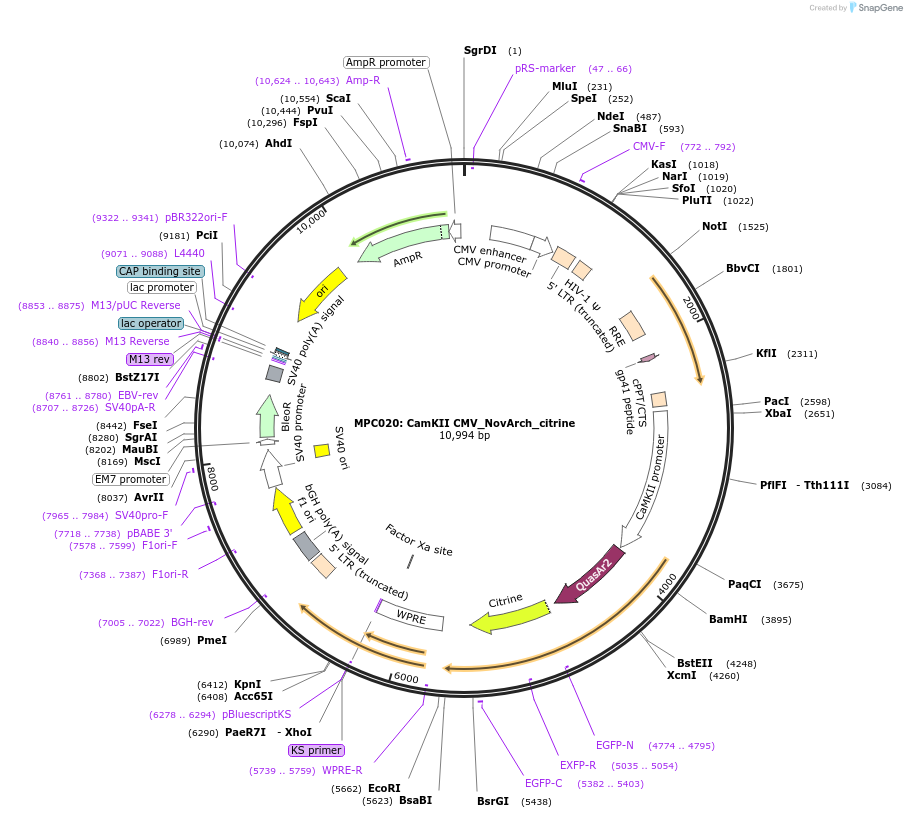

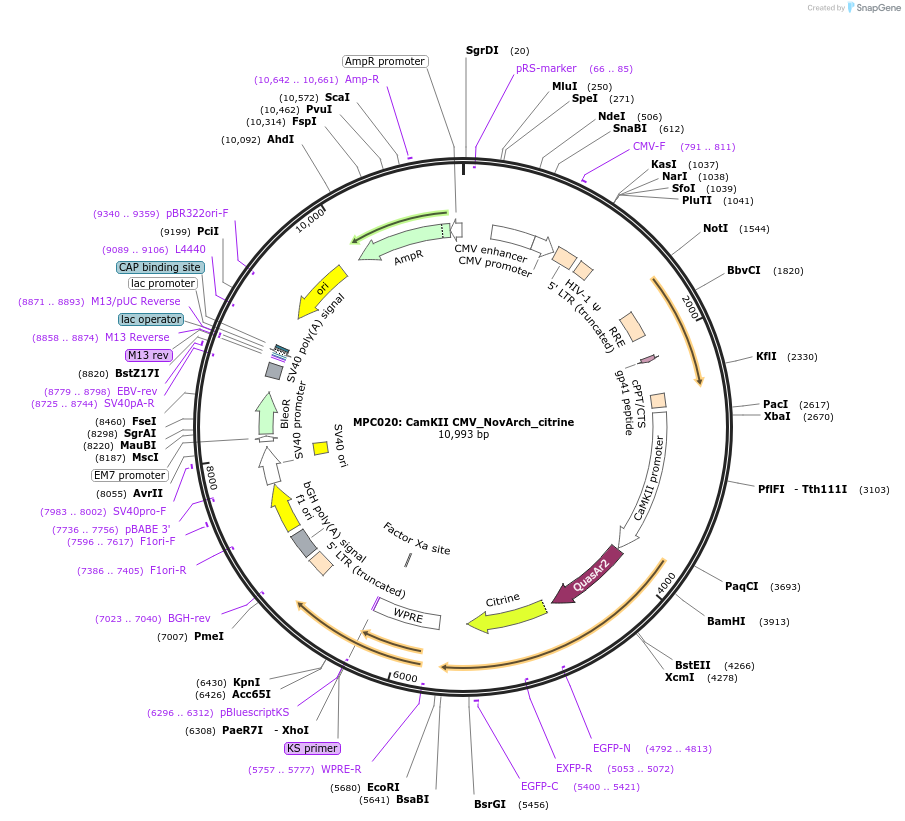

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 153193 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 153193-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 153193-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backboneFCK
- Backbone size w/o insert (bp) 9239
- Total vector size (bp) 10994
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameNovArch
-
SpeciesSynthetic
-
Insert Size (bp)1755
- Promoter CMV
-
Tag
/ Fusion Protein
- citrine
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer GACACCGACTCTAGAGCGCGGATCCACCATGGTAAGTATC
- 3′ sequencing primer TCTCGTAGCAGAACTTGTAGAATTCTTATTCATTCTCATAACAAAAG
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 153193-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 153193-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
MPC020: CamKII CMV_NovArch_citrine was a gift from Adam Cohen (Addgene plasmid # 153193 ; http://n2t.net/addgene:153193 ; RRID:Addgene_153193) -
For your References section:
Photoactivated voltage imaging in tissue with an archaerhodopsin-derived reporter. Chien MP, Brinks D, Testa-Silva G, Tian H, Phil Brooks F 3rd, Adam Y, Bloxham W, Gmeiner B, Kheifets S, Cohen AE. Sci Adv. 2021 May 5;7(19). pii: 7/19/eabe3216. doi: 10.1126/sciadv.abe3216. Print 2021 May. 10.1126/sciadv.abe3216 PubMed 33952514
