PurposeAAV-mediated expression of Jaws-KGC-tdTomato-ER2 under the Syn promoter.
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||153535||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.

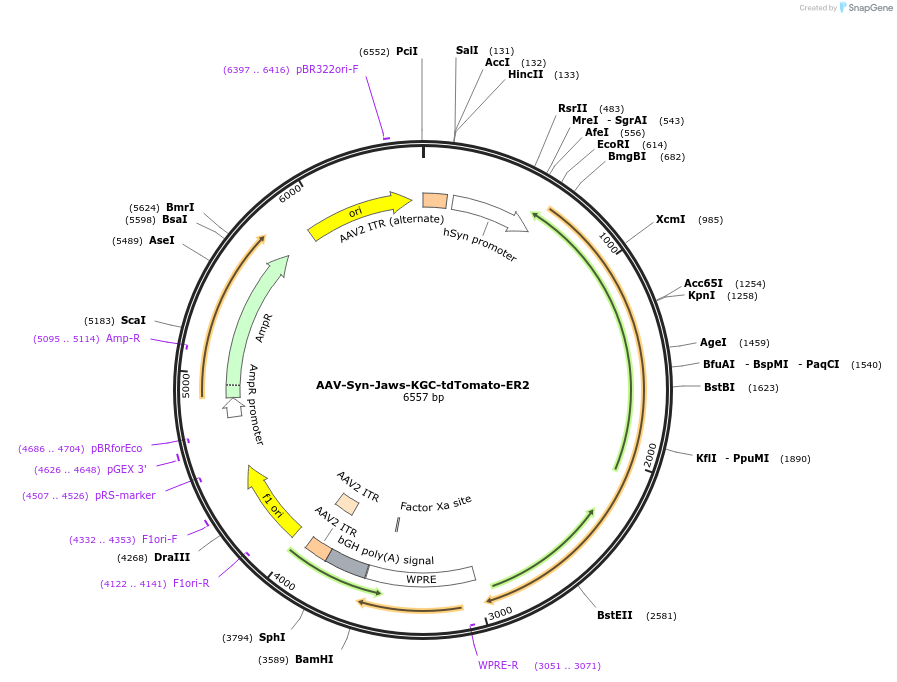

- Backbone size w/o insert (bp) 4193
- Total vector size (bp) 6557
Vector typeMammalian Expression, AAV
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Growth Strain(s)NEB Stable
Growth instructionsCan use DH5alpha at 37°C or Stbl3 at 30°C. Carbenicillin is preferred over ampicillin. In DH5alpha this plasmid may act more like a high copy plasmid, although in Stbl3 it may act more like a low copy plasmid.
Copy numberHigh Copy
SpeciesHaloarcula salinarum (stain Shark)
Insert Size (bp)2364
- Promoter Syn
/ Fusion Proteins
- KGC (C terminal on insert)
- tdTomato (C terminal on insert)
- ER2 (C terminal on insert)
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer gcacgggcgcgaccatctgc
- 3′ sequencing primer TAGCGTAAAAGGAGCAACATAG (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
The plasmid is fully sequenced in the coding sequence regions (opsin-fluorophore and important flanking regions). Multiple digestions were done to verify the vector structure. The construct and the virus were both tested in vitro.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:AAV-Syn-Jaws-KGC-tdTomato-ER2 was a gift from Edward Boyden (Addgene plasmid # 153535 ; http://n2t.net/addgene:153535 ; RRID:Addgene_153535)
For your References section:Noninvasive optical inhibition with a red-shifted microbial rhodopsin. Chuong AS, Miri ML, Busskamp V, Matthews GA, Acker LC, Sorensen AT, Young A, Klapoetke NC, Henninger MA, Kodandaramaiah SB, Ogawa M, Ramanlal SB, Bandler RC, Allen BD, Forest CR, Chow BY, Han X, Lin Y, Tye KM, Roska B, Cardin JA, Boyden ES. Nat Neurosci. 2014 Aug;17(8):1123-9. doi: 10.1038/nn.3752. Epub 2014 Jul 6. 10.1038/nn.3752 PubMed 24997763
