LIC-Z-YFP
(Plasmid
#153544)
-
Purposeperform light induced optogenetic clustering of TCR ζ-Chain tagged with yellow fluorescent protein as described in the associated publication
-
Depositing Lab
-
Depositing OrganizationUniversity of New South Wales
Located in Australia -

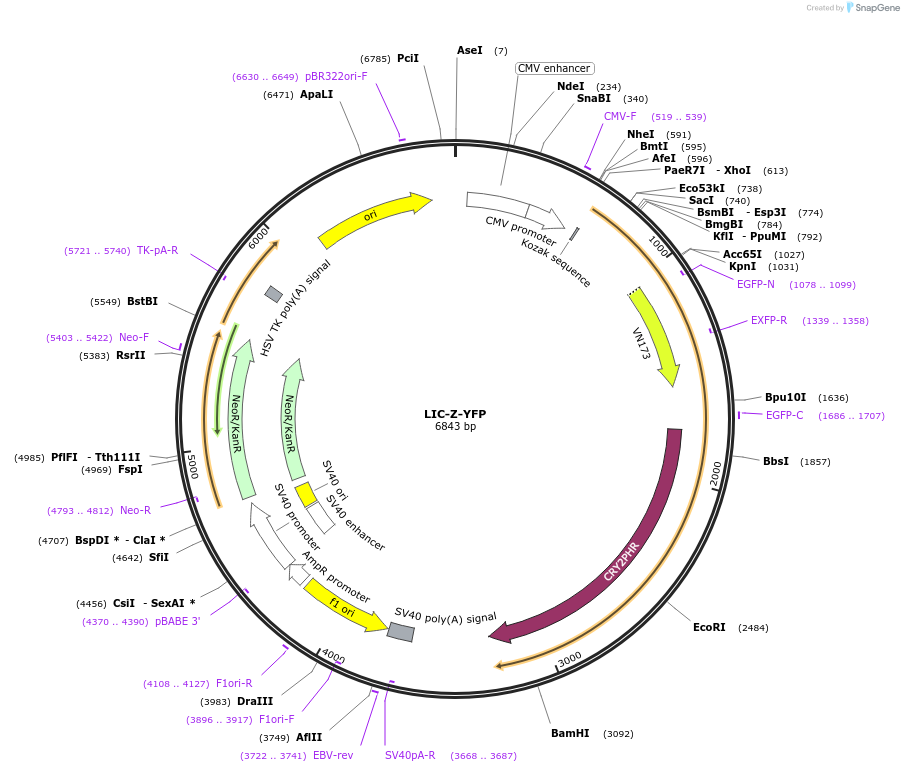

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 153544 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 153544-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 153544-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehuman TCR ζ-Chain
-
SpeciesH. sapiens (human)
-
Mutationwith mCherry in LIC-Z replaced by YFP
-
Entrez GeneCD247 (a.k.a. CD3-ZETA, CD3H, CD3Q, CD3Z, CD3ZETA, IMD25, T3Z, TCRZ)
- Promoter CMV
-
Tag
/ Fusion Protein
- Venus YFP
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer NA
- 3′ sequencing primer NA
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 153544-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 153544-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
LIC-Z-YFP was a gift from Katharina Gaus (Addgene plasmid # 153544 ; http://n2t.net/addgene:153544 ; RRID:Addgene_153544) -
For your References section:
Clustering of the zeta-Chain Can Initiate T Cell Receptor Signaling. Ma Y, Lim YJ, Benda A, Lou J, Goyette J, Gaus K. Int J Mol Sci. 2020 May 15;21(10). pii: ijms21103498. doi: 10.3390/ijms21103498. 10.3390/ijms21103498 PubMed 32429097
