pSBL_DK186
(Plasmid
#156422)
-
PurposeMammalian expression of 3a-EGFP with CMV promoter, can be used for transfection or used to generate bacmids for baculoviral infection of mammalian cells
-
Depositing Lab
-
Depositing OrganizationUniversity of California, Berkeley
Located in the United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 156422 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 156422-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 156422-D100 | 100 μg of DNA in Tris buffer | $585 | ||

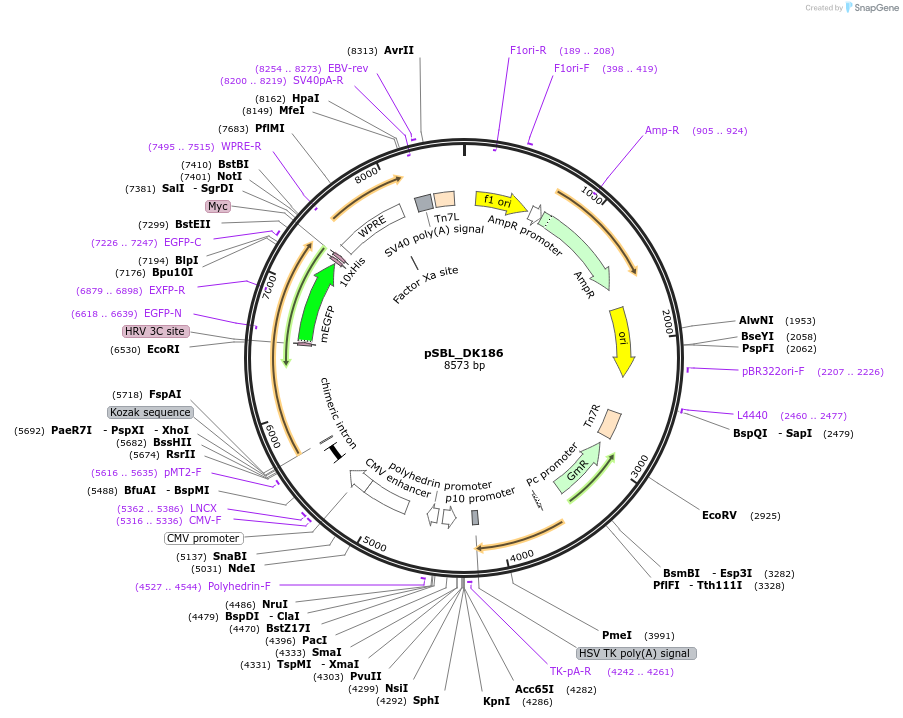

Backbone
-
Vector backboneDerived from pEG BacMam
-
Backbone manufacturerEric Gouaux Lab
-
Vector typeMammalian Expression
-
Selectable markersGentamicin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSARS-CoV-2 3a protein
-
SpeciesSARS-CoV-2
- Promoter CMV
-
Tag
/ Fusion Protein
- EGFP-His (C terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XhoI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer CMV Forward
- 3′ sequencing primer EGFP-N
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byIDT Gene Block
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/lookup/doi/10.1101/2020.06.17.156554 for bioRxiv preprint.
DNA (Catalog # 156422-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 156422-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSBL_DK186 was a gift from Stephen Brohawn (Addgene plasmid # 156422 ; http://n2t.net/addgene:156422 ; RRID:Addgene_156422) -
For your References section:
Cryo-EM structure of the SARS-CoV-2 3a ion channel in lipid nanodiscs. Kern DM, Sorum B, Mali SS, Hoel CM, Sridharan S, Remis JP, Toso DB, Kotecha A, Bautista DM, Brohawn SG. bioRxiv [Preprint]. 2021 Jan 26:2020.06.17.156554. doi: 10.1101/2020.06.17.156554. 10.1101/2020.06.17.156554 PubMed 32587976
