pJWK_VD_01
(Plasmid
#158102)
-
Purpose5'UTR stem-loop luciferase reporter: 0kcal/mol
-
Depositing Lab
-
Depositing OrganizationJohns Hopkins University and School of Medicine
Located in the United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 158102 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 158102-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 158102-D100 | 100 μg of DNA in Tris buffer | $585 | ||

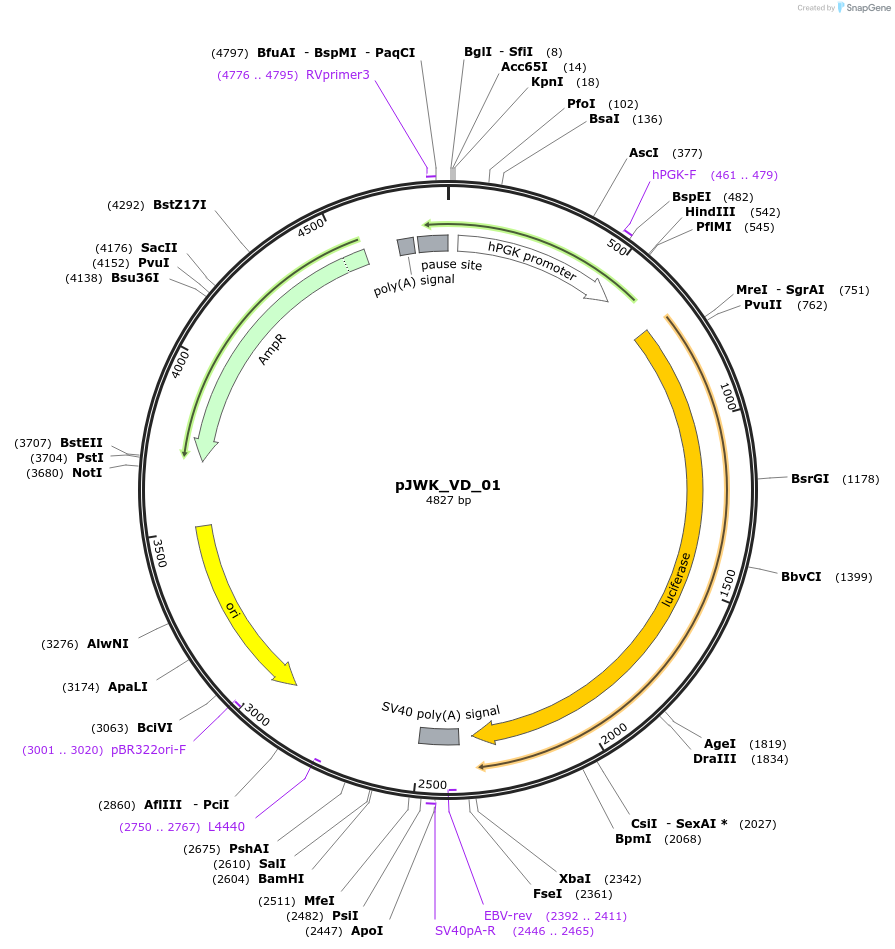

Backbone
-
Vector backbonepGL4.53(luc2/PGK)
-
Backbone manufacturerPromega
- Backbone size w/o insert (bp) 4716
- Total vector size (bp) 4827
-
Vector typeMammalian Expression, Luciferase
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert name5'UTR synthetic stem-loop 0kcal/mol
-
SpeciesSynthetic
-
Insert Size (bp)101
- Promoter PGK
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer AAACGGAAGCCGCACGTC
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 158102-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 158102-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJWK_VD_01 was a gift from Ted Dawson (Addgene plasmid # 158102 ; http://n2t.net/addgene:158102 ; RRID:Addgene_158102) -
For your References section:
Defects in mRNA Translation in LRRK2-Mutant hiPSC-Derived Dopaminergic Neurons Lead to Dysregulated Calcium Homeostasis. Kim JW, Yin X, Jhaldiyal A, Khan MR, Martin I, Xie Z, Perez-Rosello T, Kumar M, Abalde-Atristain L, Xu J, Chen L, Eacker SM, Surmeier DJ, Ingolia NT, Dawson TM, Dawson VL. Cell Stem Cell. 2020 Oct 1;27(4):633-645.e7. doi: 10.1016/j.stem.2020.08.002. Epub 2020 Aug 25. 10.1016/j.stem.2020.08.002 PubMed 32846140
