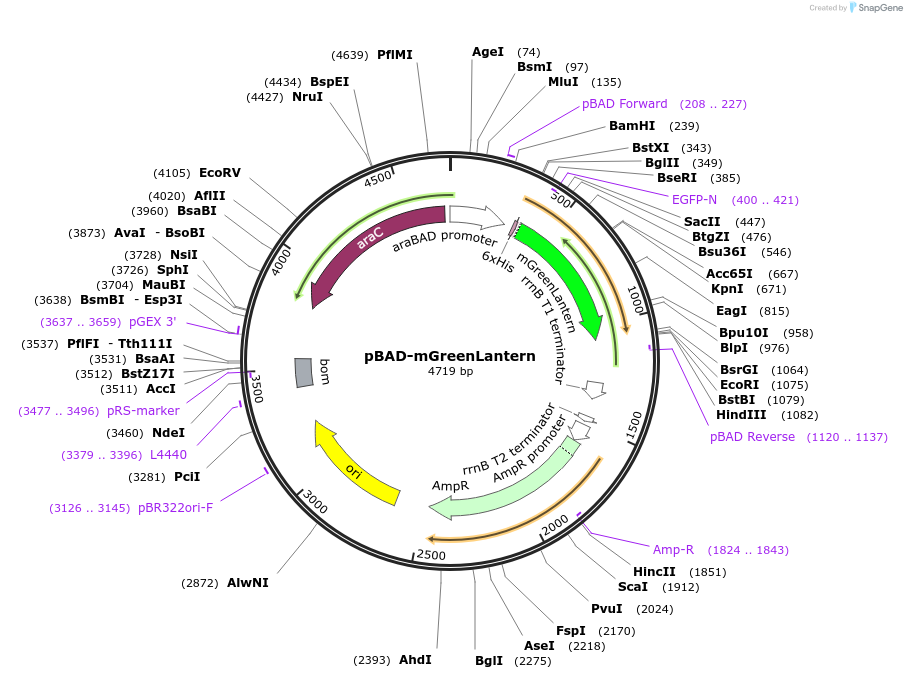

pBAD-mGreenLantern
(Plasmid #161913)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 161913 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pBAD/His-B
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 3999
  • Total vector size (bp) 4719
  • Modifications to backbone
    Backbone is identical to that of Addgene #37129 (several amino acids between the FP insert and His-tag are removed).
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    mGreenLantern
  • Alt name
    mGL
  • Species
    Synthetic
  • Insert Size (bp)
    720
  • Promoter araB
  • Tag / Fusion Protein
    • 6xHis (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer pBAD-F (ATGCCATAGCATTTTTATCCA)
  • 3′ sequencing primer pBAD-R (GATTTAATCTGTATCAGG)
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBAD-mGreenLantern was a gift from Gregory Petsko (Addgene plasmid # 161913 ; http://n2t.net/addgene:161913 ; RRID:Addgene_161913)
  • For your References section:

    mGreenLantern: a bright monomeric fluorescent protein with rapid expression and cell filling properties for neuronal imaging. Campbell BC, Nabel EM, Murdock MH, Lao-Peregrin C, Tsoulfas P, Blackmore MG, Lee FS, Liston C, Morishita H, Petsko GA. Proc Natl Acad Sci U S A. 2020 Dec 1;117(48):30710-30721. doi: 10.1073/pnas.2000942117. Epub 2020 Nov 18. 10.1073/pnas.2000942117 PubMed 33208539
