pPBbsr-6080NES(Epac-sensor)
(Plasmid
#162487)
-
PurposehyBRET-Epac, an Epac biosensor based on fluorescence resonance energy transfer (FRET) and those based on bioluminescence energy transfer (BRET)
-
Depositing Lab
-
Depositing OrganizationKyoto University, Graduate School of Biostudies
Located in Japan -

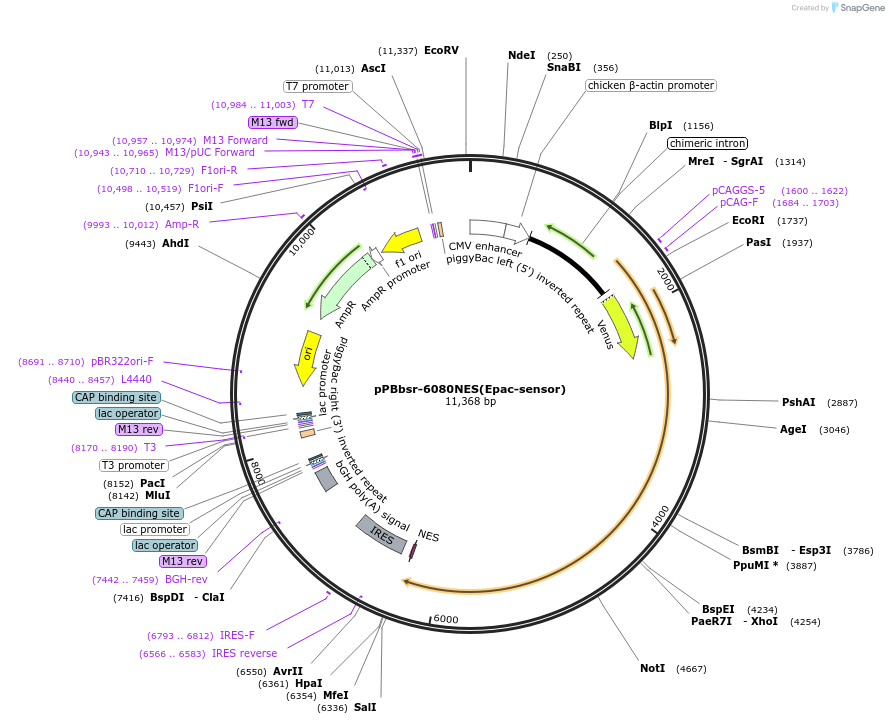

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 162487 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 162487-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 162487-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepPB
- Backbone size w/o insert (bp) 6800
- Total vector size (bp) 11368
-
Vector typeMammalian Expression
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameEpac-sensor
-
SpeciesH. sapiens (human), Synthetic
-
Insert Size (bp)4500
-
Entrez GeneRAPGEF3 (a.k.a. CAMP-GEFI, EPAC, EPAC1, HSU79275, bcm910)
- Promoter CAG
-
Tag
/ Fusion Protein
- YPet and Turquoise2GL
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site SalI (not destroyed)
- 5′ sequencing primer pCAGGS-5
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 162487-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 162487-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pPBbsr-6080NES(Epac-sensor) was a gift from Michiyuki Matsuda (Addgene plasmid # 162487 ; http://n2t.net/addgene:162487 ; RRID:Addgene_162487) -
For your References section:
Booster, a Red-Shifted Genetically Encoded Forster Resonance Energy Transfer (FRET) Biosensor Compatible with Cyan Fluorescent Protein/Yellow Fluorescent Protein-Based FRET Biosensors and Blue Light-Responsive Optogenetic Tools. Watabe T, Terai K, Sumiyama K, Matsuda M. ACS Sens. 2020 Feb 26. doi: 10.1021/acssensors.9b01941. 10.1021/acssensors.9b01941 PubMed 32101394
