pcDNA™5/FRT/CMV_promoter-Cas9-E2A-mRFP
(Plasmid
#164131)
-
PurposeExpresses SpCas9 and mRFP in mammalian cells (an insertion vector to generate Cas9-knockin cell lines)
-
Depositing Lab
-
Depositing OrganizationYonsei University Health System
Located in Republic of Korea -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 164131 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 164131-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 164131-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA5-FRT
-
Backbone manufacturerThermo Fisher
- Backbone size w/o insert (bp) 4000
- Total vector size (bp) 9955
-
Vector typeMammalian Expression, CRISPR, Synthetic Biology
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSpCas9
-
SpeciesSynthetic
-
Insert Size (bp)4104
-
Entrez Genecas9 (a.k.a. B6D67_RS04280, ERS445054_00848)
- Promoter CMV
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer cgcaaatgggcggtaggcgtg
- 3′ sequencing primer TAGAAGGCACAGTCGAGG
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 164131-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 164131-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA™5/FRT/CMV_promoter-Cas9-E2A-mRFP was a gift from Hyongbum Kim (Addgene plasmid # 164131 ; http://n2t.net/addgene:164131 ; RRID:Addgene_164131) -
For your References section:
Recording of elapsed time and temporal information about biological events using Cas9. Park J, Lim JM, Jung I, Heo SJ, Park J, Chang Y, Kim HK, Jung D, Yu JH, Min S, Yoon S, Cho SR, Park T, Kim HH. Cell. 2021 Jan 28. pii: S0092-8674(21)00014-3. doi: 10.1016/j.cell.2021.01.014. 10.1016/j.cell.2021.01.014 PubMed 33539780

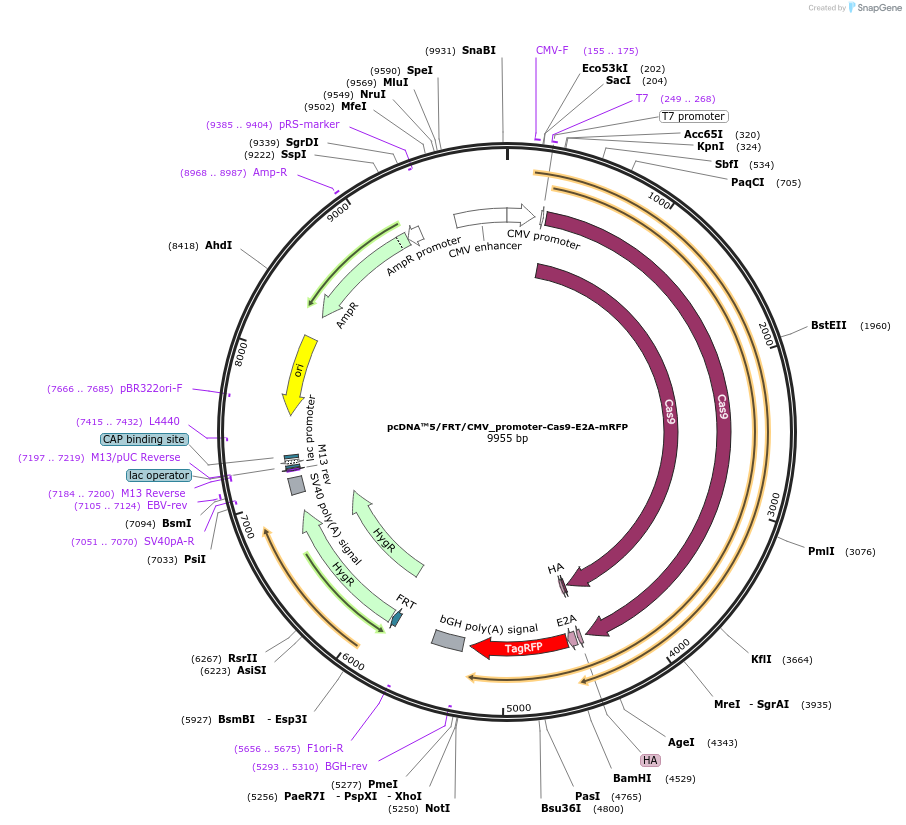

Map uploaded by the depositor.
