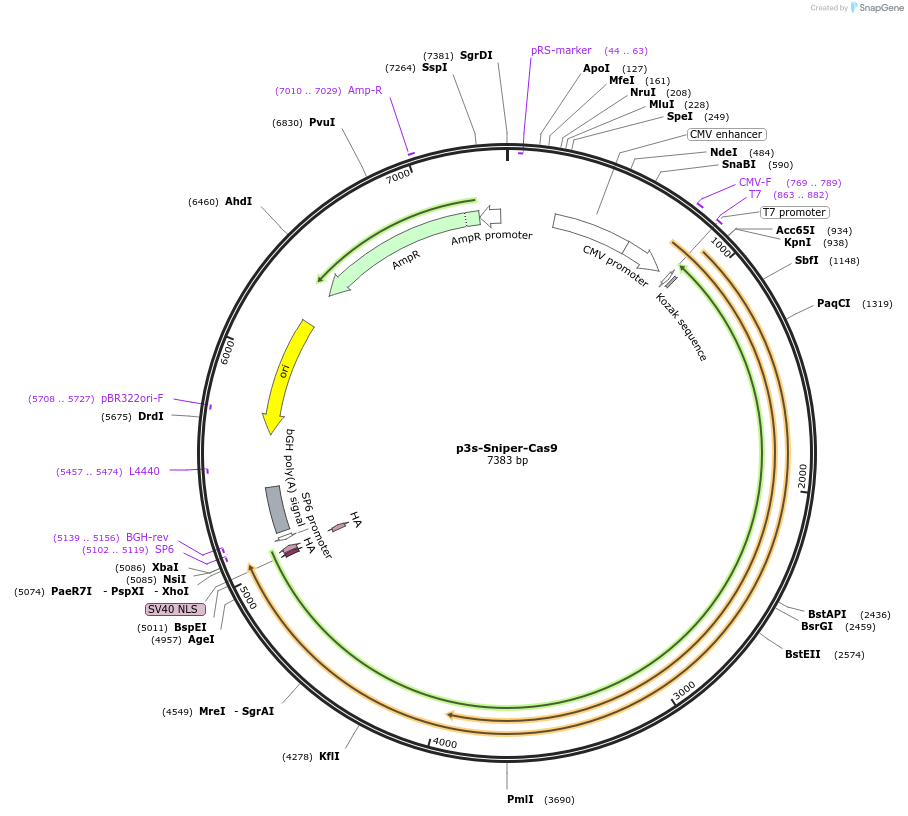

PurposeExpresses Sniper-Cas9 with CMV promoter
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||113912||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 3200
- Total vector size (bp) 7383
Modifications to backbonePvuII digestion and re-ligation to delete non-essential element in p3-Sniper-Cas9.
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Copy numberHigh Copy
- Promoter CMV
- Cloning method Gibson Cloning
- 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
- 3′ sequencing primer TAGAAGGCACAGTCGAGG (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:p3s-Sniper-Cas9 was a gift from Jungjoon Lee (Addgene plasmid # 113912 ; http://n2t.net/addgene:113912 ; RRID:Addgene_113912)
For your References section:Directed evolution of CRISPR-Cas9 to increase its specificity. Lee JK, Jeong E, Lee J, Jung M, Shin E, Kim YH, Lee K, Jung I, Kim D, Kim S, Kim JS. Nat Commun. 2018 Aug 6;9(1):3048. doi: 10.1038/s41467-018-05477-x. 10.1038/s41467-018-05477-x PubMed 30082838
