(Plasmid #164828)


This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 164828 Standard format: Plasmid sent in bacteria as agar stab 1 $85

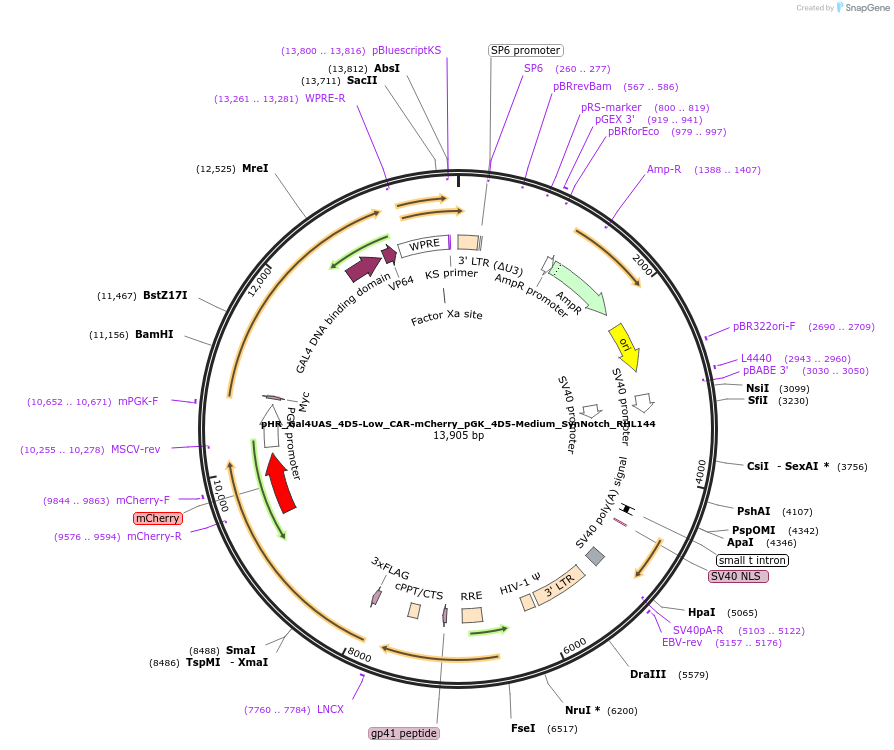

  • Vector backbone
  • Backbone size w/o insert (bp) 9197
  • Total vector size (bp) 13925
  • Modifications to backbone
    pGK promoter and inducible Gal4UAS miniCMV promoter
  • Vector type

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    AntiHER2 4D5-Low Chimeric Antigen receptor (CD8alphaTM-41BB-CD3z)
  • Species
  • Insert Size (bp)
  • Promoter miniCMV
  • Tag / Fusion Protein
    • mCherry (C terminal on insert)

Cloning Information for Gene/Insert 1

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer agagctcgtttagtgaaccg
  • 3′ sequencing primer CAGCGGGGCTGCTAAAGCGCATGC
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    AntiHER2 4D5-Medium Gal4VP64 synthetic Notch receptor
  • Insert Size (bp)
  • Promoter pGK

Cloning Information for Gene/Insert 2

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer GCTTCAAAAGCGCACGTCT
  • 3′ sequencing primer catagcgtaaaaggagcaaca
  • (Common Sequencing Primers)

Terms and Licenses

  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHR_Gal4UAS_4D5-Low_CAR-mCherry_pGK_4D5-Medium_SynNotch_RHL144 was a gift from Wendell Lim (Addgene plasmid # 164828 ; ; RRID:Addgene_164828)
  • For your References section:

    T cell circuits that sense antigen density with an ultrasensitive threshold. Hernandez-Lopez RA, Yu W, Cabral KA, Creasey OA, Lopez Pazmino MDP, Tonai Y, De Guzman A, Makela A, Saksela K, Gartner ZJ, Lim WA. Science. 2021 Mar 12;371(6534):1166-1171. doi: 10.1126/science.abc1855. Epub 2021 Feb 25. 10.1126/science.abc1855 PubMed 33632893
