Addgene

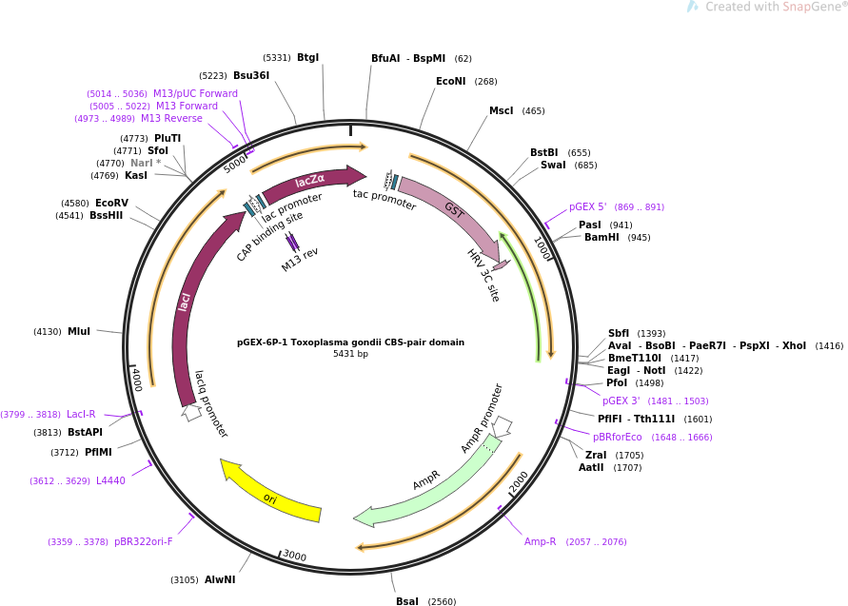

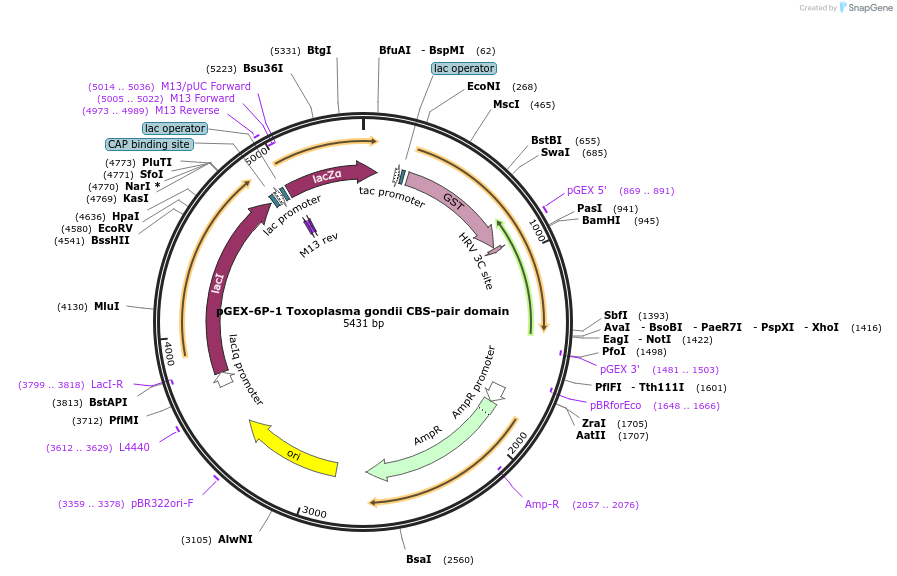

pGEX-6P-1 Toxoplasma gondii CBS-pair domain
(Plasmid #166438)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 166438 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pGEX-6P-1
  • Backbone manufacturer
    Amersham-Pharmacia
  • Backbone size w/o insert (bp) 4984
  • Total vector size (bp) 5431
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Toxoplasma gondii CBS-pair domain
  • Species
    Toxoplasma gondii
  • Insert Size (bp)
    447
  • Promoter Tac, LacI, Amp
  • Tag / Fusion Protein
    • GST (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer pGEX Fwd
  • 3′ sequencing primer pGEX Rev
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGEX-6P-1 Toxoplasma gondii CBS-pair domain was a gift from Kalle Gehring (Addgene plasmid # 166438 ; http://n2t.net/addgene:166438 ; RRID:Addgene_166438)
  • For your References section:

    Burst kinetics and CNNM binding are evolutionarily conserved properties of phosphatases of regenerating liver. Fakih R, Goldstein RH, Kozlov G, Gehring K. J Biol Chem. 2023 Apr;299(4):103055. doi: 10.1016/j.jbc.2023.103055. Epub 2023 Feb 22. 10.1016/j.jbc.2023.103055 PubMed 36822330
