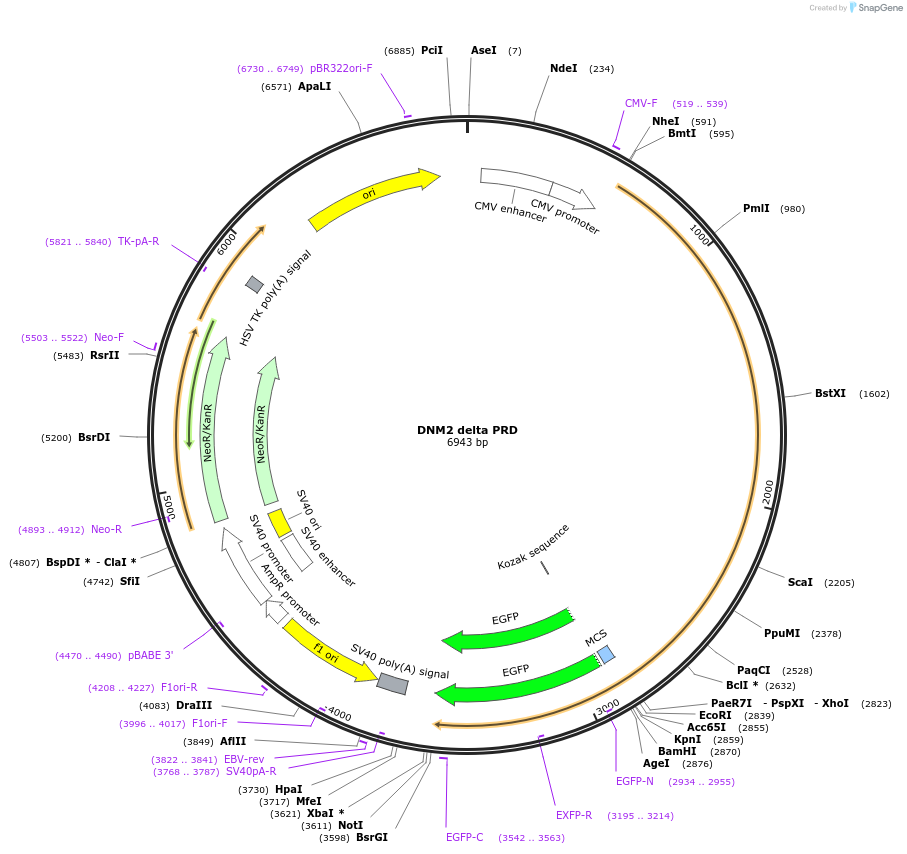

DNM2 delta PRD
(Plasmid #168275)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 168275 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone size w/o insert (bp) 4722
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    DNM2
  • Alt name
    dynamin 2
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2226
  • Mutation
    aa 1-742
  • GenBank ID
    BC054501.1
  • Entrez Gene
    DNM2 (a.k.a. CMT2M, CMTDI1, CMTDIB, DI-CMTB, DYN2, DYNII, LCCS5)
  • Tag / Fusion Protein
    • GFP (C terminal on backbone)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Wildtype DNM2 plasmid was from Addgene #27689.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    DNM2 delta PRD was a gift from Cheng-han Yu (Addgene plasmid # 168275 ; http://n2t.net/addgene:168275 ; RRID:Addgene_168275)
  • For your References section:

    Podosome formation promotes plasma membrane invagination and integrin-beta3 endocytosis on a viscous RGD-membrane. Cao F, Zhou Y, Liu X, Yu CH. Commun Biol. 2020 Mar 13;3(1):117. doi: 10.1038/s42003-020-0843-2. 10.1038/s42003-020-0843-2 PubMed 32170110
