pNB200
(Plasmid
#169111)
-
PurposeTESEC backbone for target expression
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 169111 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepNB200
- Backbone size w/o insert (bp) 2400
-
Vector typeBacterial Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namelacZ
-
SpeciesEscherichia coli K12 MG1655
-
Insert Size (bp)581
-
MutationCodon optimized for E. coli
-
Entrez GenelacZ (a.k.a. b0344, ECK0341)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
- 3′ cloning site unknown (unknown if destroyed)
- 5′ sequencing primer unknown (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Plasmid design adapted from Daniel R, Rubens JR, Sarpeshkar R, Lu TK. Synthetic analog computation in living cells. Nature. 2013 May;497(7451):619–23.
Please visit https://doi.org/10.1101/2021.03.26.437171 for bioRxiv preprint.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pNB200 was a gift from Edwin Wintermute (Addgene plasmid # 169111 ; http://n2t.net/addgene:169111 ; RRID:Addgene_169111) -
For your References section:
Low-cost anti-mycobacterial drug discovery using engineered E. coli. Bongaerts N, Edoo Z, Abukar AA, Song X, Sosa-Carrillo S, Haggenmueller S, Savigny J, Gontier S, Lindner AB, Wintermute EH. Nat Commun. 2022 Jul 7;13(1):3905. doi: 10.1038/s41467-022-31570-3. 10.1038/s41467-022-31570-3 PubMed 35798732

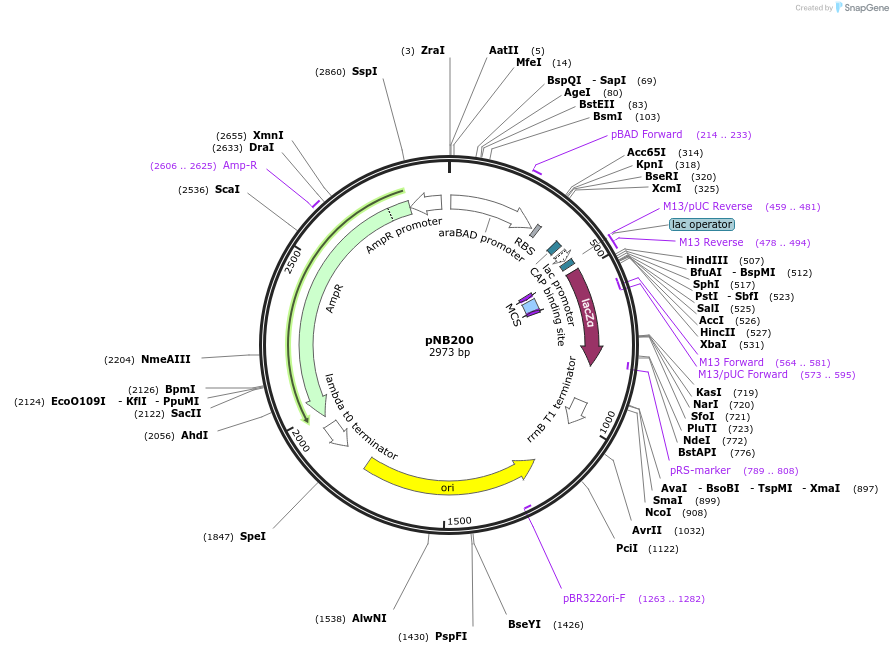

Map uploaded by the depositor.
