pLV.5’-LMNA-eGFP-KI
(Plasmid
#170545)
-
PurposeExpresses a sgRNA for 5' tagging to LMNA and contains a cassette with eGFP flanked by homology arms for LMNA
-
Depositing Lab
-

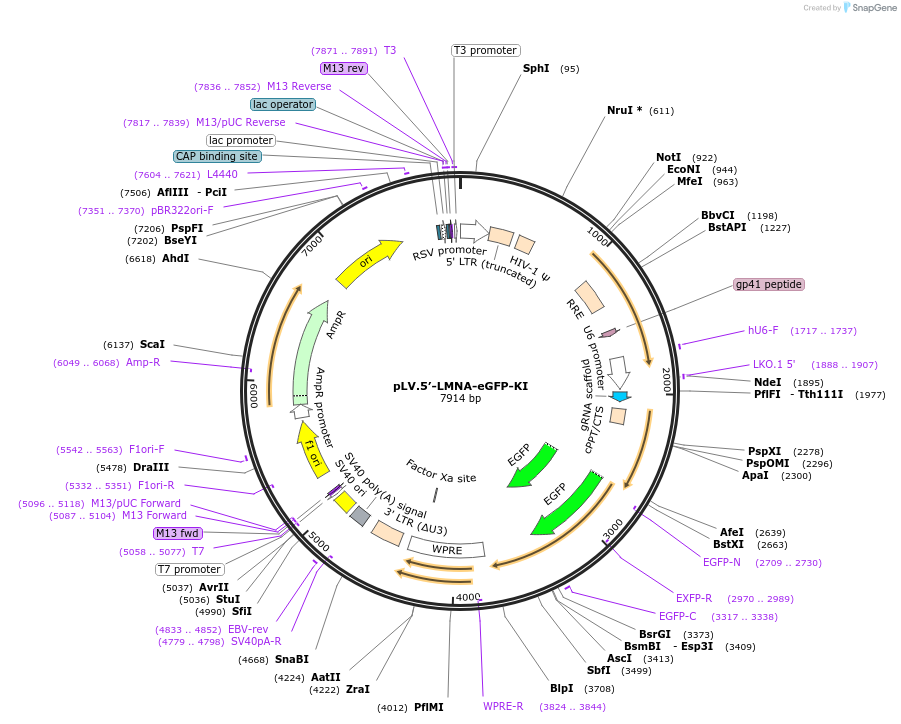

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 170545 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepLV.5'eGFP_sgLMNA
- Backbone size w/o insert (bp) 7186
- Total vector size (bp) 7186
-
Vector typeLentiviral, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert 1
-
Gene/Insert nameLeft Homology arm for LMNA knockin
-
Alt nameLHA-LMNA
-
Insert Size (bp)368
Gene/Insert 2
-
Gene/Insert nameRight Homology arm for VIM knockin
-
Alt nameRHA-VIM
-
Insert Size (bp)361
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLV.5’-LMNA-eGFP-KI was a gift from Jacob Giehm Mikkelsen (Addgene plasmid # 170545 ; http://n2t.net/addgene:170545 ; RRID:Addgene_170545) -
For your References section:
CRISPR-Cas9-directed gene tagging using a single integrase-defective lentiviral vector carrying a transposase-based Cas9 off switch. Thomsen EA, Skipper KA, Andersen S, Haslund D, Skov TW, Mikkelsen JG. Mol Ther Nucleic Acids. 2022 Aug 4;29:563-576. doi: 10.1016/j.omtn.2022.08.005. eCollection 2022 Sep 13. 10.1016/j.omtn.2022.08.005 PubMed 36090759
