pUb RxCas13d + RxCas13d guide RNA
(Plasmid
#176303)
-
PurposeExpresses RxCas13d and its associated guide RNA in Drosophila cells
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 176303 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepUb-3xFLAG-MCS
- Total vector size (bp) 8019
-
Vector typeInsect Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameRxCas13d
-
Alt nameRfxCas13d
- Promoter Ubi-p63e
-
Tag
/ Fusion Protein
- HA tag (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site SalI (not destroyed)
- 3′ cloning site AgeI (not destroyed)
- 5′ sequencing primer CTGACTAAATCTTAGTTTGTATTGTCAT (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUb RxCas13d + RxCas13d guide RNA was a gift from Jeremy Wilusz (Addgene plasmid # 176303 ; http://n2t.net/addgene:176303 ; RRID:Addgene_176303) -
For your References section:
CRISPR/Cas13 effectors have differing extents of off-target effects that limit their utility in eukaryotic cells. Ai Y, Liang D, Wilusz JE. Nucleic Acids Res. 2022 Mar 4. pii: 6542487. doi: 10.1093/nar/gkac159. 10.1093/nar/gkac159 PubMed 35244715

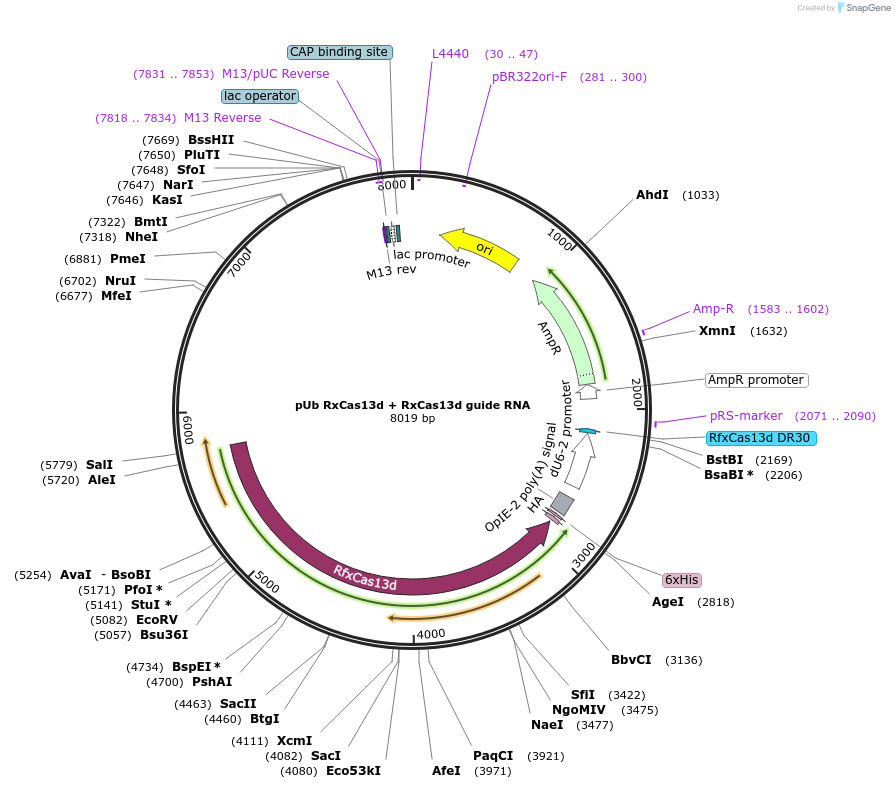

Map uploaded by the depositor.
