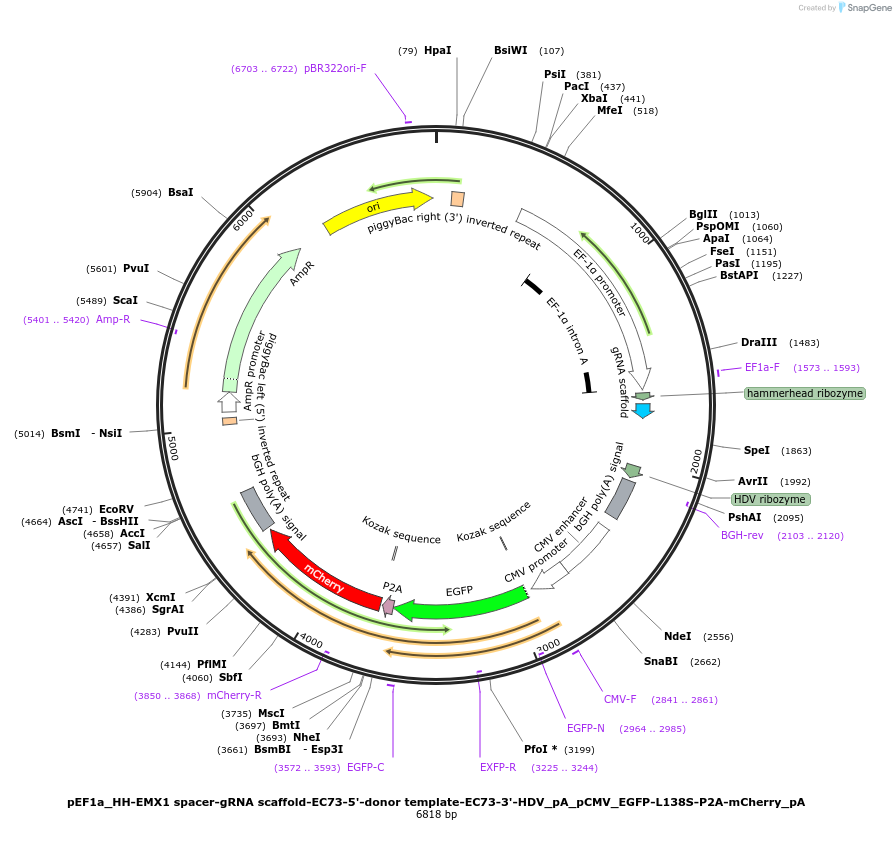

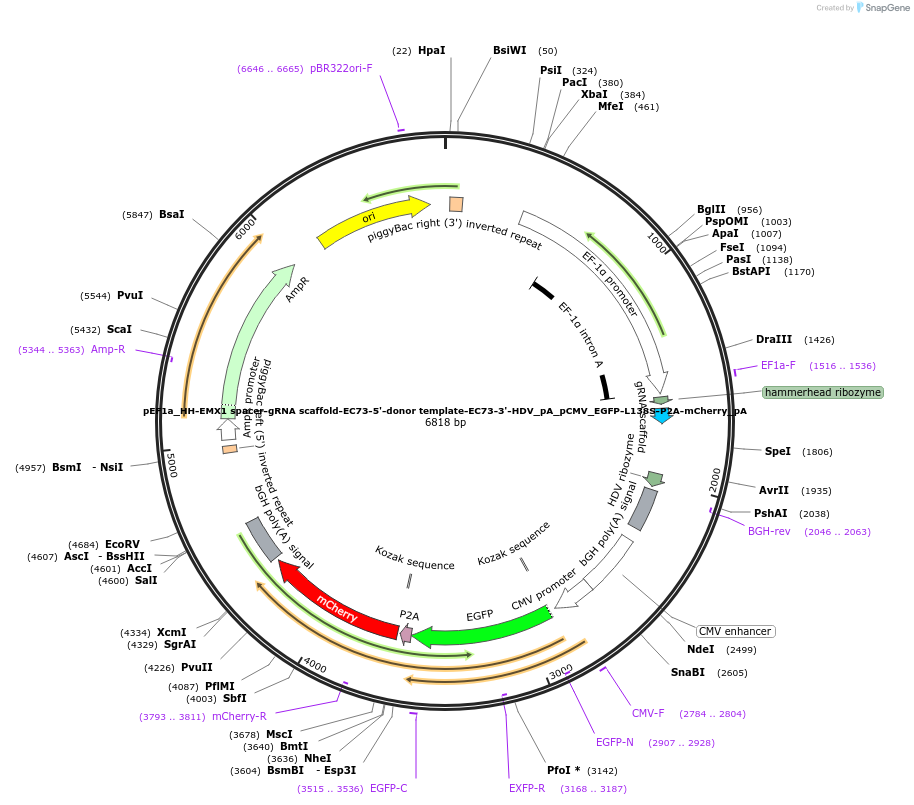

pEF1a_HH-EMX1 spacer-gRNA scaffold-EC73-5'-donor template-EC73-3'-HDV_pA_pCMV_EGFP-L138S-P2A-mCherry_pA
(Plasmid
#176459)
-
PurposeVector for expressing retron Ec73ncRNA-gRNA chimeric RNA (rgRNA) targeting EMX1 driven by EF1alpha promoter and and EGFP(L138S)-P2A-mCherry driven by CMV
-
Depositing Lab
-
Depositing OrganizationCenter for Excellence in Brain Science and Intelligence Technology, Chinese Academy of Sciences
Located in China -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 176459 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 176459-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 176459-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepiggyBac-EF1alpha
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameHH-EMX1 spacer-gRNA scaffold-Ec73ncRNA-donor sequence-HDV
-
gRNA/shRNA sequenceGAGTCCGAGCAGAAGAAGAA
-
SpeciesSynthetic
-
Insert Size (bp)463
- Promoter EF1alpha
Cloning Information
- Cloning method Gibson Cloning
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Plasmid name in Yang lab: HGpl553
DNA (Catalog # 176459-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 176459-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEF1a_HH-EMX1 spacer-gRNA scaffold-EC73-5'-donor template-EC73-3'-HDV_pA_pCMV_EGFP-L138S-P2A-mCherry_pA was a gift from Hui Yang (Addgene plasmid # 176459 ; http://n2t.net/addgene:176459 ; RRID:Addgene_176459) -
For your References section:
Precise genome editing without exogenous donor DNA via retron editing system in human cells. Kong X, Wang Z, Zhang R, Wang X, Zhou Y, Shi L, Yang H. Protein Cell. 2021 Aug 17. pii: 10.1007/s13238-021-00862-7. doi: 10.1007/s13238-021-00862-7. 10.1007/s13238-021-00862-7 PubMed 34403072
