pBZ191-pU6-sgBFP-CBh-sv40NLS-Cas9-NLS-T2A-mCherry
(Plasmid
#170183)
-
PurposeExpression vector for a sgRNA against BFP and spCas9 linked to mCherry via a T2A peptide
-
Depositing Lab
-
Depositing OrganizationStanford University
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 170183 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 170183-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 170183-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepU6-(BbsI)_CBh-sv40NLS-Cas9-NLS T2A-mCherry
-
Backbone manufacturerFraser lab
-
Modifications to backbonesgBFP was inserted by golden gate cloning into the vector backbone pU6-(BbsI)_CBh-sv40NLS-Cas9-NLS T2A-mCherry.
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namesgBFP
-
Alt nameguide RNA against BFP
-
Insert Size (bp)20
- Promoter hU6
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BbsI (destroyed during cloning)
- 3′ cloning site BbsI (destroyed during cloning)
- 5′ sequencing primer 5'-GACTATCATATGCTTACCGT-3'
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 170183-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 170183-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBZ191-pU6-sgBFP-CBh-sv40NLS-Cas9-NLS-T2A-mCherry was a gift from Hunter Fraser (Addgene plasmid # 170183 ; http://n2t.net/addgene:170183 ; RRID:Addgene_170183) -
For your References section:
Bacterial Retrons Enable Precise Gene Editing in Human Cells. Zhao B, Chen SA, Lee J, Fraser HB. CRISPR J. 2022 Jan 24. doi: 10.1089/crispr.2021.0065. 10.1089/crispr.2021.0065 PubMed 35076284

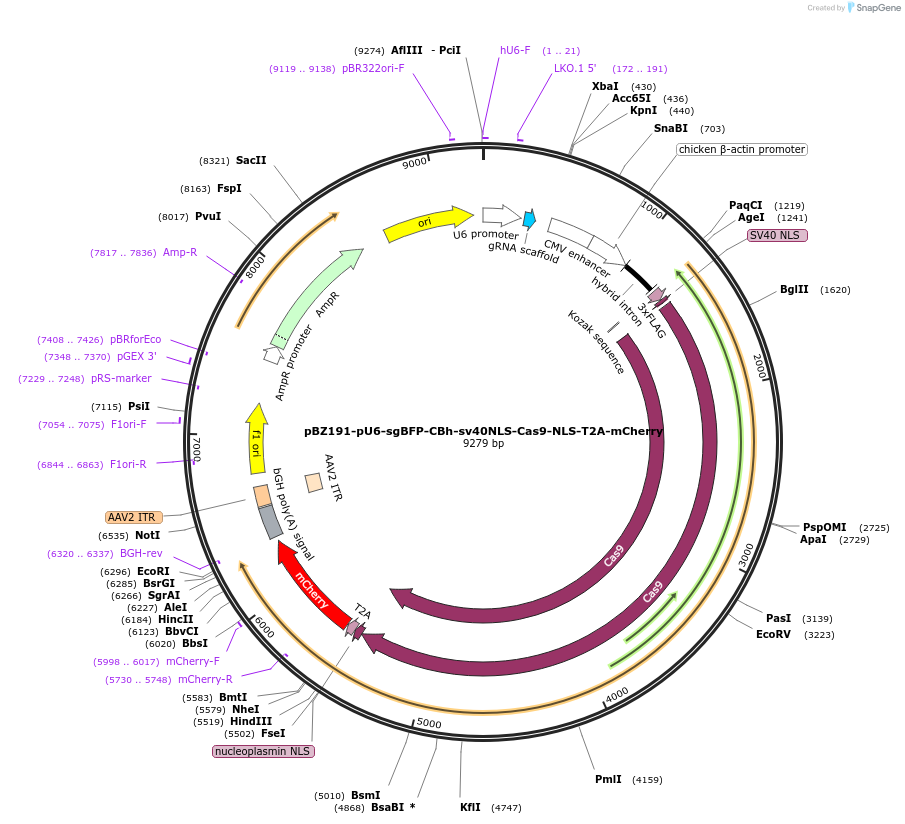

Map uploaded by the depositor.
