3918-37
(Plasmid
#176495)
-
PurposepTRE-EGFP-T2A-mCherry-polyA
-
Depositing Lab
-
Depositing OrganizationUniversity of Washington
Located in United States of America -

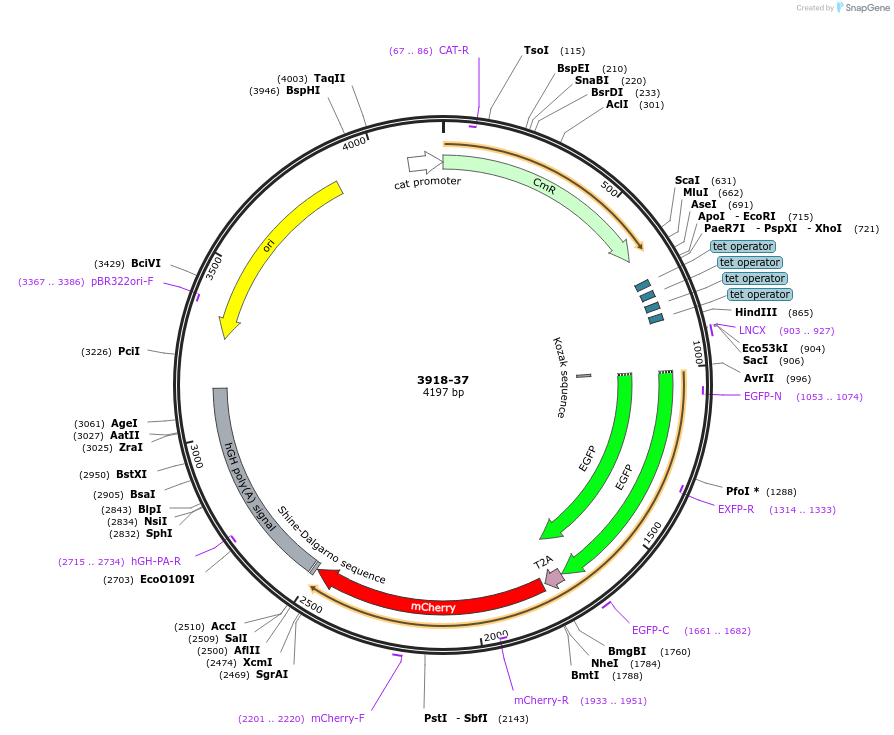

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 176495 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 176495-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 176495-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCamR
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameTetracyline Responsive Element driving EGFP-T2A-mCherry
- Promoter TRE
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer EGFP-F
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 176495-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 176495-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
3918-37 was a gift from Albert La Spada (Addgene plasmid # 176495 ; http://n2t.net/addgene:176495 ; RRID:Addgene_176495) -
For your References section:
MAP4K3 mediates amino acid-dependent regulation of autophagy via phosphorylation of TFEB. Hsu CL, Lee EX, Gordon KL, Paz EA, Shen WC, Ohnishi K, Meisenhelder J, Hunter T, La Spada AR. Nat Commun. 2018 Mar 5;9(1):942. doi: 10.1038/s41467-018-03340-7. 10.1038/s41467-018-03340-7 PubMed 29507340
