pm-EphA1-RTK-Cry2olig
(Plasmid #176683)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 176683 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 176683-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 176683-D100 100 μg of DNA in Tris buffer $585
Add to Cart

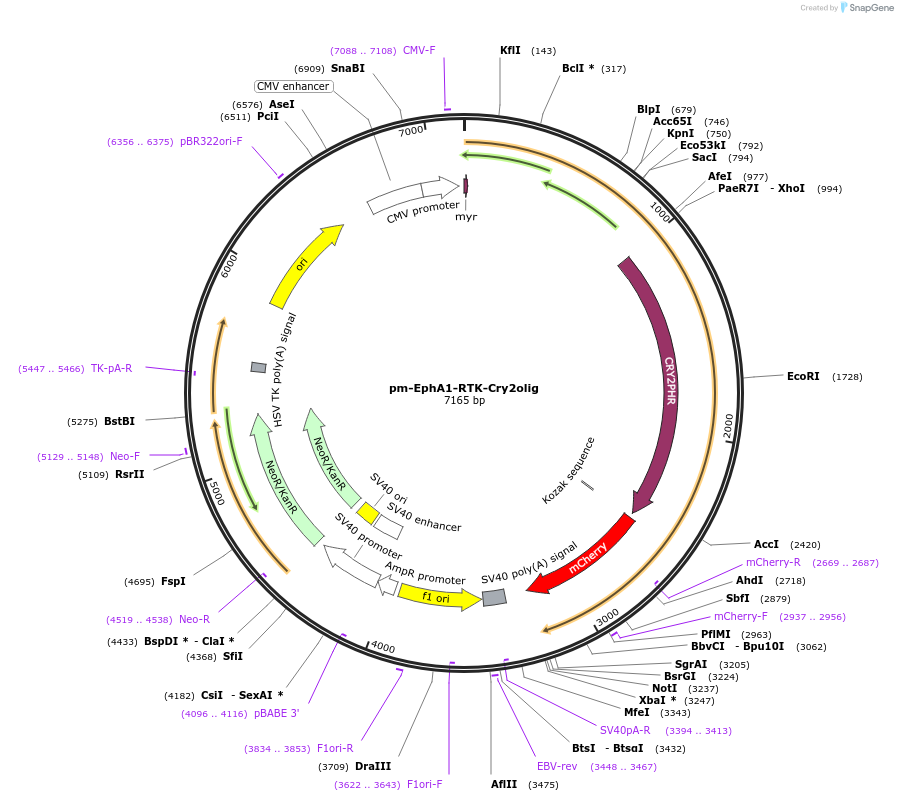

Backbone

  • Vector backbone
    pmCherry-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4722
  • Total vector size (bp) 7252
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PM-EphA1-Cry2olig-mCherry
  • Species
    H. sapiens (human), A. thaliana (mustard weed)
  • Insert Size (bp)
    3234
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site nheI (not destroyed)
  • 3′ cloning site bmti (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer SV40pA-R
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2024.02.06.579139 for bioRxiv preprint.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pm-EphA1-RTK-Cry2olig was a gift from Robert Hughes (Addgene plasmid # 176683 ; http://n2t.net/addgene:176683 ; RRID:Addgene_176683)

  • For your References section:

    Optogenetic Regulation of EphA1 RTK Activation and Signaling. Wurz AI, Zheng KS, Hughes RM. bioRxiv [Preprint]. 2024 Feb 7:2024.02.06.579139. doi: 10.1101/2024.02.06.579139. 10.1101/2024.02.06.579139 PubMed 38370612
