pcDNA6.2-YFP-CWT
(Plasmid
#176689)
-
PurposeFluorescent reporter for phagosomal escape of Staphylococcus aureus
-
Depositing Lab
-
Depositing OrganizationJulius-Maximilians-Universitaet Wuerzburg
Located in Germany -

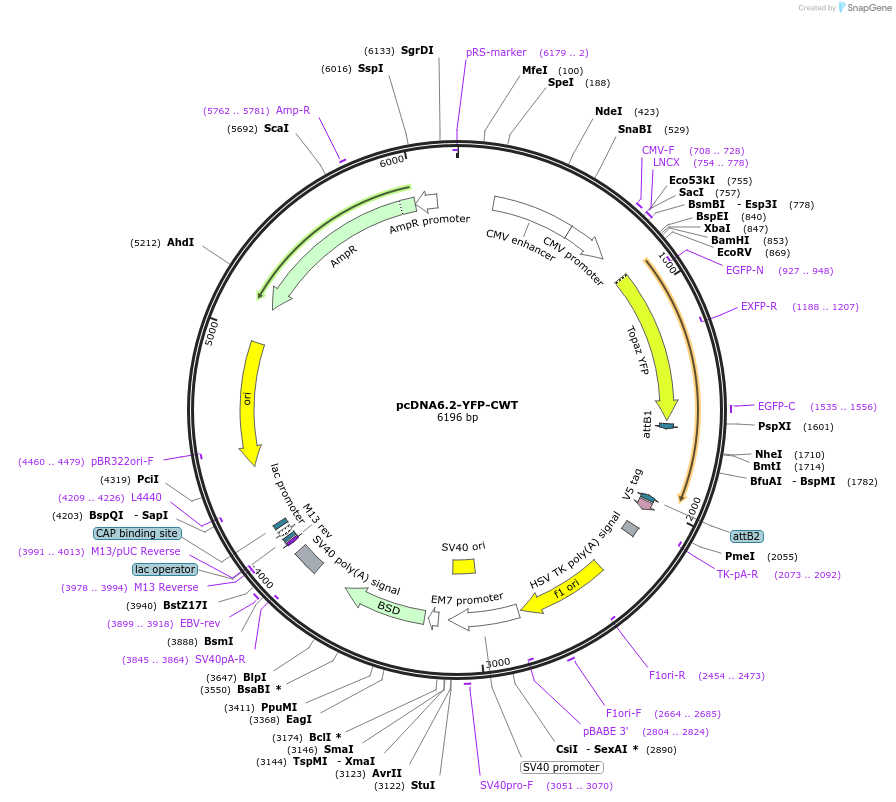

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 176689 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 176689-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 176689-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA6.2
-
Backbone manufacturerInvitrogen
-
Vector typeMammalian Expression
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namecell wall-targeting domain of Lysostaphin
-
Alt nameCWT
-
SpeciesAequorea victoria (modified), Staphylococcus simulans
-
Insert Size (bp)719
-
Mutationdeletion of protase domain of Lysostaphin
- Promoter CMV
-
Tag
/ Fusion Protein
- YFP (N terminal on backbone)
Cloning Information
- Cloning method TOPO Cloning
- 5′ sequencing primer CMV-F
- 3′ sequencing primer TK-pA-R
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 176689-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 176689-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA6.2-YFP-CWT was a gift from Martin Fraunholz (Addgene plasmid # 176689 ; http://n2t.net/addgene:176689 ; RRID:Addgene_176689) -
For your References section:
Staphylococcus aureus Exploits a Non-ribosomal Cyclic Dipeptide to Modulate Survival within Epithelial Cells and Phagocytes. Blattner S, Das S, Paprotka K, Eilers U, Krischke M, Kretschmer D, Remmele CW, Dittrich M, Muller T, Schuelein-Voelk C, Hertlein T, Mueller MJ, Huettel B, Reinhardt R, Ohlsen K, Rudel T, Fraunholz MJ. PLoS Pathog. 2016 Sep 15;12(9):e1005857. doi: 10.1371/journal.ppat.1005857. eCollection 2016 Sep. 10.1371/journal.ppat.1005857 PubMed 27632173
