pmiRFP2-Actin-C-18
(Plasmid
#178965)
-
PurposeExpresses the fusion protein of miRFP2-Actin-C in mammalian cells
-
Depositing Lab
-
Depositing OrganizationWestlake University
Located in China -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 178965 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 178965-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 178965-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFP-N1
- Backbone size w/o insert (bp) 2118
- Total vector size (bp) 6072
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namemiRFP2-actin
-
SpeciesH. sapiens (human), M. musculus (mouse)
- Promoter CMV
-
Tag
/ Fusion Protein
- actin (N terminal on insert)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer aaatgggcggtaggcgtgt
- 3′ sequencing primer ggacaaaccacaactagaatgcagtg
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 178965-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 178965-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pmiRFP2-Actin-C-18 was a gift from Kiryl Piatkevich (Addgene plasmid # 178965 ; http://n2t.net/addgene:178965 ; RRID:Addgene_178965) -
For your References section:
Rapid directed molecular evolution of fluorescent proteins in mammalian cells. Babakhanova S, Jung EE, Namikawa K, Zhang H, Wang Y, Subach OM, Korzhenevskiy DA, Rakitina TV, Xiao X, Wang W, Shi J, Drobizhev M, Park D, Eisenhard L, Tang H, Koster RW, Subach FV, Boyden ES, Piatkevich KD. Protein Sci. 2022 Mar;31(3):728-751. doi: 10.1002/pro.4261. Epub 2021 Dec 30. 10.1002/pro.4261 PubMed 34913537

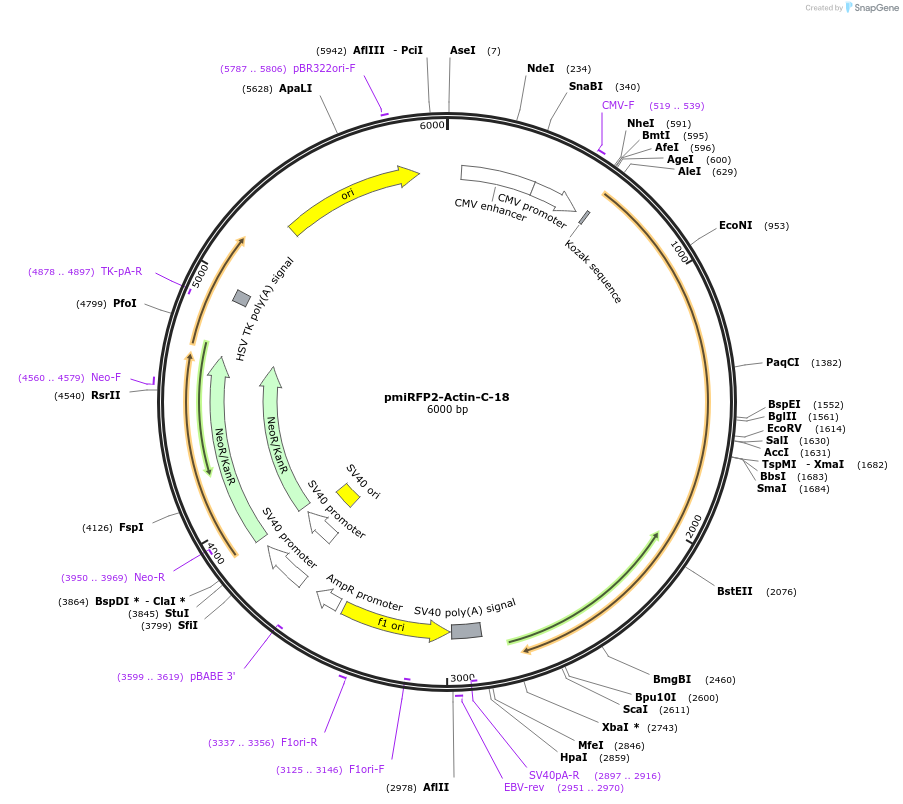

Map uploaded by the depositor.
