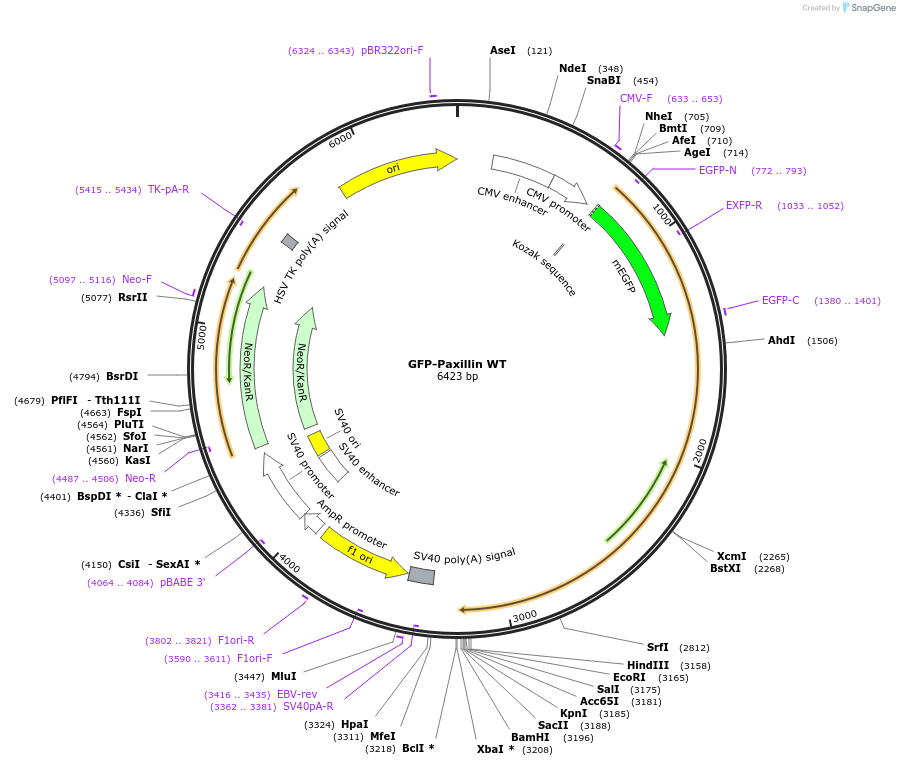

GFP-Paxillin WT
(Plasmid #186152)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 186152 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    mEGFP-C1
  • Backbone size w/o insert (bp) 4750
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    PXN
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1743
  • Entrez Gene
    PXN
  • Promoter cmv
  • Tag / Fusion Protein
    • mEGFP (N terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer EGFP-C-For (5-CATGGTCCTGCTGGAGTTCGTG-3)
  • 3′ sequencing primer SV40pA-R (5-GAAATTTGTGATGCTATTGC-3)
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    mEGFP-C1 (Addgene Plasmid #54759/ Modification of Addgene Plasmid #50529)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    GFP-Paxillin WT was a gift from Michael Rosen (Addgene plasmid # 186152 ; http://n2t.net/addgene:186152 ; RRID:Addgene_186152)
  • For your References section:

    Synergistic phase separation of two pathways promotes integrin clustering and nascent adhesion formation. Case LB, De Pasquale M, Henry L, Rosen MK. Elife. 2022 Jan 20;11. pii: 72588. doi: 10.7554/eLife.72588. 10.7554/eLife.72588 PubMed 35049497
