Cherry-Myo1b
(Plasmid
#187366)
-
PurposeExpresses rat myosin 1b isoform b domain labelled with Cherry
-
Depositing Lab
-
Depositing OrganizationInstitut Curie
Located in France -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 187366 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 187366-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 187366-D100 | 100 μg of DNA in Tris buffer | $585 | ||

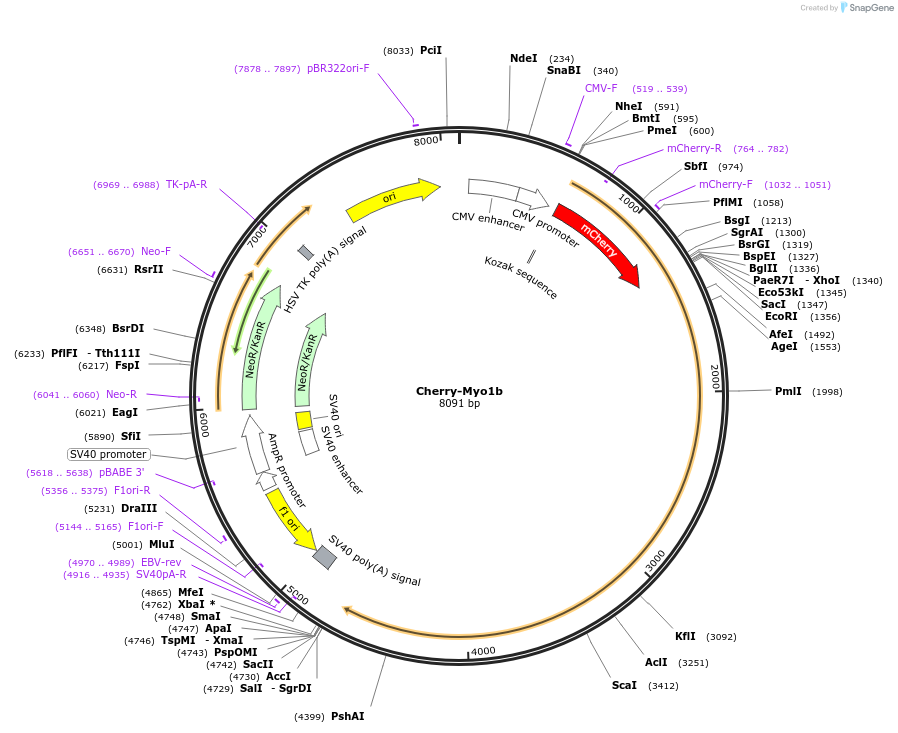

Backbone
-
Vector backbonepmCherry-C1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 4743
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemyosin 1b isoform b
-
SpeciesR. norvegicus (rat)
-
Insert Size (bp)3324
-
Entrez GeneMyo1b (a.k.a. Myr1)
- Promoter CMV
-
Tag
/ Fusion Protein
- mCherry (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site SalI (not destroyed)
- 5′ sequencing primer pmcherry C1 GCCCCGTAATGCAGAAGAAGA
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The expression of the recombinant plasmid includes the addition of 18 amino acids (SGLRSRAQASNSDPRYPP) between Cherry and Myo1b.
DNA (Catalog # 187366-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 187366-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Cherry-Myo1b was a gift from Evelyne Coudrier (Addgene plasmid # 187366 ; http://n2t.net/addgene:187366 ; RRID:Addgene_187366) -
For your References section:
Myosin 1b promotes axon formation by regulating actin wave propagation and growth cone dynamics. Iuliano O, Yoshimura A, Prosperi MT, Martin R, Knolker HJ, Coudrier E. J Cell Biol. 2018 Jun 4;217(6):2033-2046. doi: 10.1083/jcb.201703205. Epub 2018 Mar 27. 10.1083/jcb.201703205 PubMed 29588377
