pcDNA3-PB1-3x-FLAG-B/BRISBANE/60/2008
(Plasmid
#187918)
-
PurposeExpresses C terminal 3xFLAG tagged PB1 subunit of Influenza B/Brisbane/60/2008 virus polymerase in mammalian cells
-
Depositing Lab
-
Depositing OrganizationIndian Institute of Technology, Kharagpur
Located in India -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 187918 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 187918-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 187918-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3
- Backbone size w/o insert (bp) 5426
- Total vector size (bp) 7760
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsStreak an ampicillin agar plate from the frozen glycerol stock. Grow bacterial culture from a single colony grown on the plate.
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namepolymerase basic protein 1
-
Alt namePB1
-
SpeciesB/Brisbane/60/2008
-
Insert Size (bp)2334
- Promoter CMV Promoter
-
Tag
/ Fusion Protein
- 3xFLAG (C terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoR1 (not destroyed)
- 3′ cloning site Not1 (not destroyed)
- 5′ sequencing primer CMV Forward
- 3′ sequencing primer BGH Reverse
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 187918-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 187918-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3-PB1-3x-FLAG-B/BRISBANE/60/2008 was a gift from Arindam Mondal (Addgene plasmid # 187918 ; http://n2t.net/addgene:187918 ; RRID:Addgene_187918) -
For your References section:
A Comprehensive Roadmap Towards the Generation of an Influenza B Reporter Assay Using a Single DNA Polymerase-Based Cloning of the Reporter RNA Construct. Kedia N, Banerjee S, Mondal A. Front Microbiol. 2022 May 25;13:868367. doi: 10.3389/fmicb.2022.868367. eCollection 2022. 10.3389/fmicb.2022.868367 PubMed 35694292

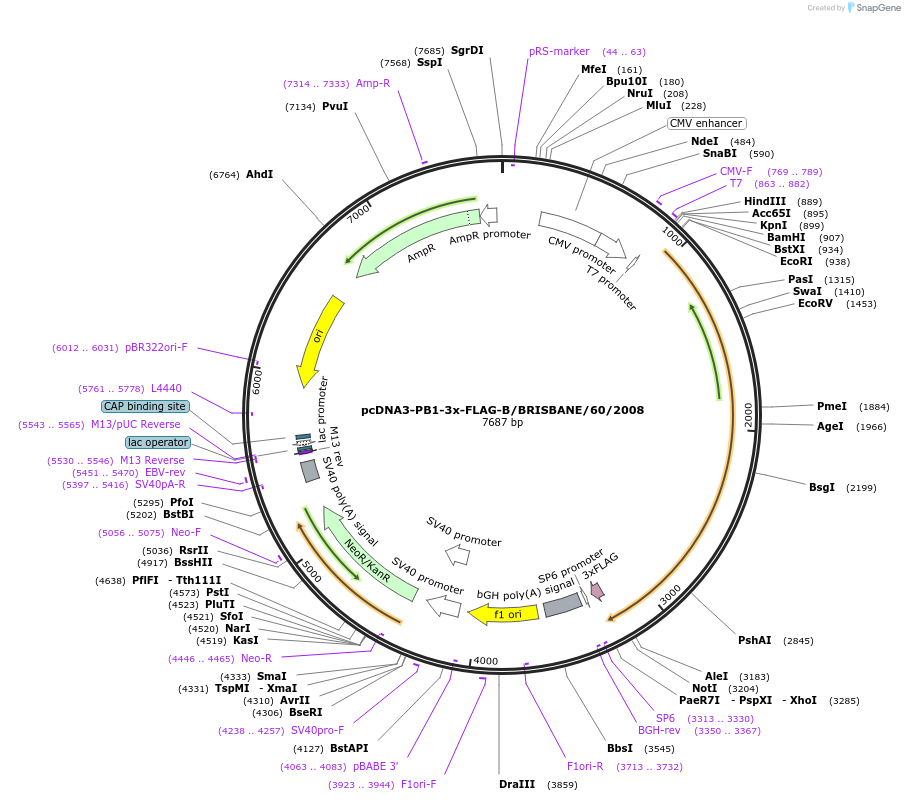

Map uploaded by the depositor.
