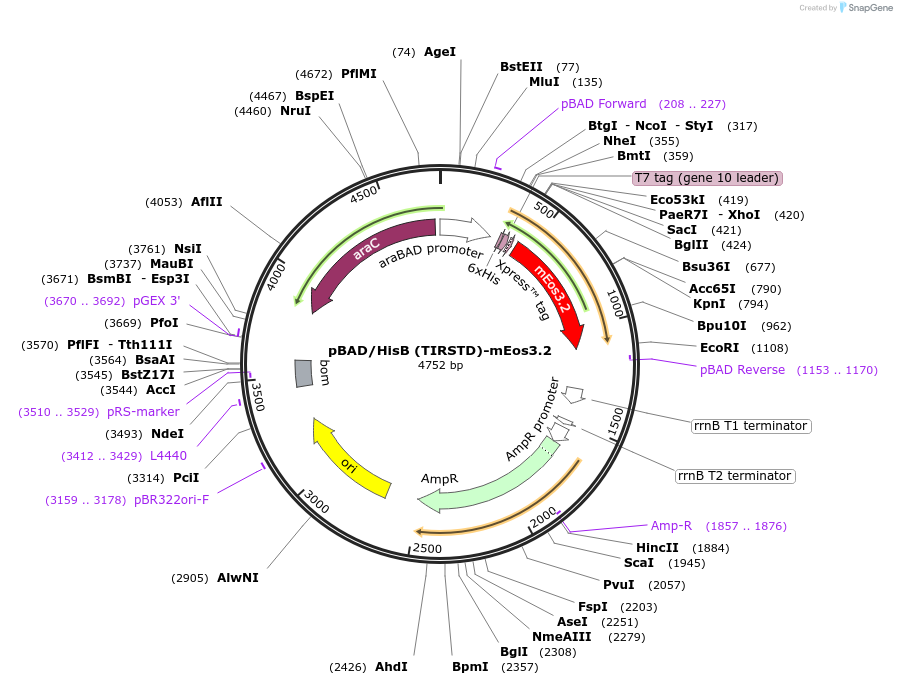

pBAD/HisB (TIRSTD)-mEos3.2
(Plasmid #189719)


Item Catalog # Description Quantity Price (USD)
Plasmid 189719 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Total vector size (bp) 4752
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
  • Species
  • Promoter pBAD/HisB
  • Tag / Fusion Protein
    • His-T7-EK (N terminal on backbone)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer atgccatagcatttttatcc
  • 3′ sequencing primer gatttaatctgtatcagg
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBAD/HisB (TIRSTD)-mEos3.2 was a gift from Daniel Daley (Addgene plasmid # 189719 ; ; RRID:Addgene_189719)
  • For your References section:

    Signal amplification of araC pBAD using a standardized translation initiation region. Shilling PJ, Khananisho D, Cumming AJ, Soderstrom B, Daley DO. Synth Biol (Oxf). 2022 Jul 5;7(1):ysac009. doi: 10.1093/synbio/ysac009. eCollection 2022. 10.1093/synbio/ysac009 PubMed 35903559
