PurposeA binding-dead fluorescent biosensor for fructose 1,6-bisphosphate (FBP) for negative control experiments (mammalian expression vector)
-
Depositing Lab
-
Depositing OrganizationOregon Health & Science University
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 193448 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 193448-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 193448-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backboneCMV
- Backbone size w/o insert (bp) 3200
- Total vector size (bp) 4718
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameBinding-Dead Hylight
-
Insert Size (bp)1518
-
MutationThreonine 67 (ACT) mutated to a Glutamic Acid (GAG)
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer BGH-rev
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 193448-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 193448-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
CMV-Hylight-T152E was a gift from Richard Goodman (Addgene plasmid # 193448 ; http://n2t.net/addgene:193448 ; RRID:Addgene_193448) -
For your References section:
Monitoring glycolytic dynamics in single cells using a fluorescent biosensor for fructose 1,6-bisphosphate. Koberstein JN, Stewart ML, Smith CB, Tarasov AI, Ashcroft FM, Stork PJS, Goodman RH. Proc Natl Acad Sci U S A. 2022 Aug 2;119(31):e2204407119. doi: 10.1073/pnas.2204407119. Epub 2022 Jul 26. 10.1073/pnas.2204407119 PubMed 35881794

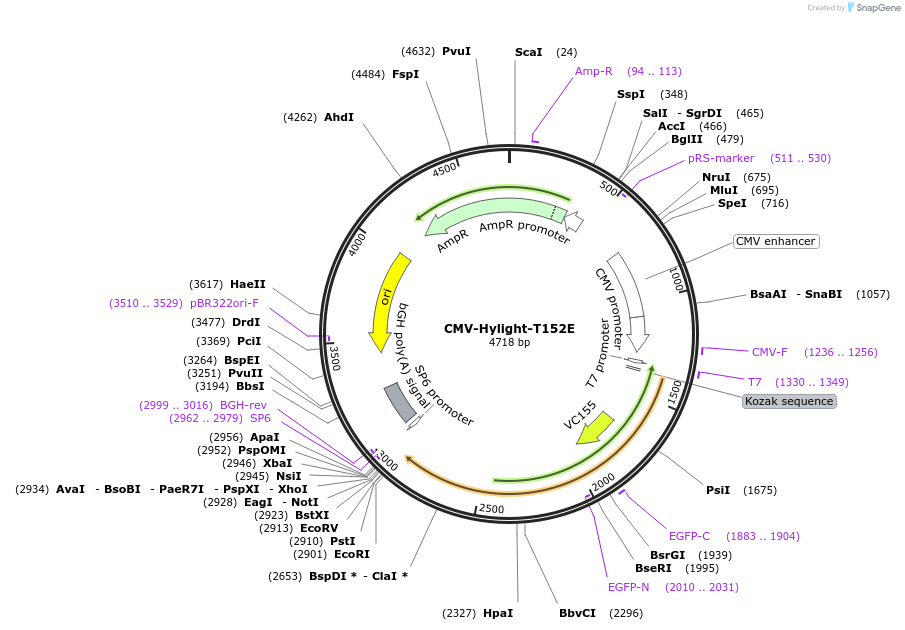

Map uploaded by the depositor.
