GFP-RAPH1ΔTBS
(Plasmid
#194859)
-
PurposeExpress eGFP-RAPH1 lacking the TBS domain (RAPH1 aa 2-92 deleted) in mammalian cells.
-
Depositing Lab
-
Depositing OrganizationAbo Akademi University
Located in Finland -

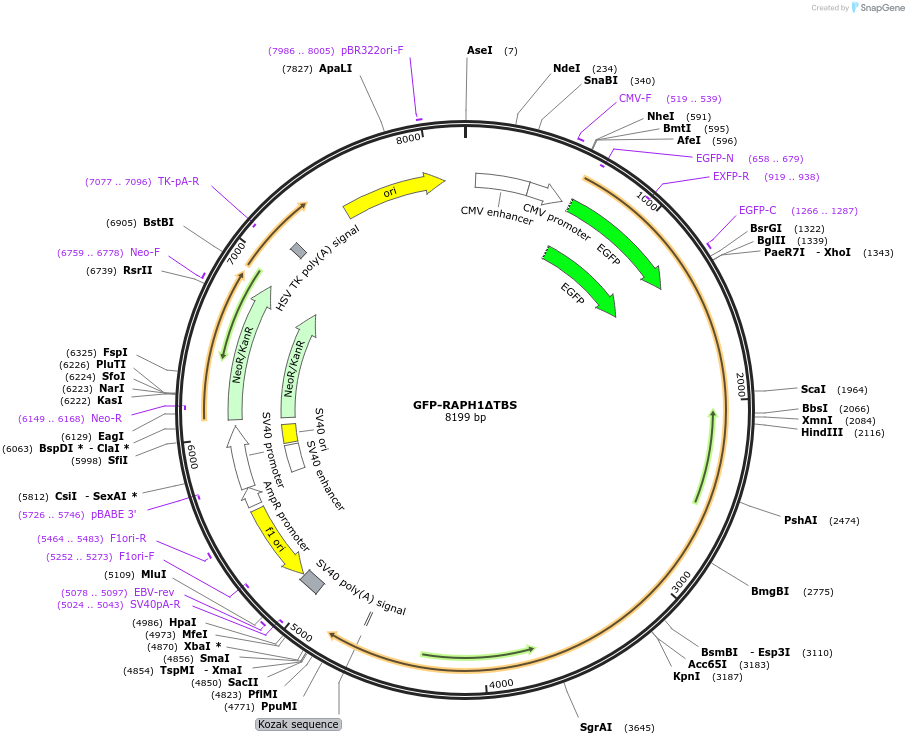

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 194859 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 194859-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 194859-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backboneEGFPC1
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameRAPH1
-
Alt nameLamellipodin
-
SpeciesH. sapiens (human)
-
MutationRAPH1 with amino acids 2-92 deleted
-
Entrez GeneRAPH1 (a.k.a. ALS2CR18, ALS2CR9, LPD, PREL-2, PREL2, RMO1, RalGDS/AF-6)
- Promoter CMV
-
Tag
/ Fusion Protein
- eGFP (N terminal on backbone)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer EGFP-C
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byThe original EGFP-Lpd plasmid was kindly provided by Matthias Krause (King’s College London).
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The GFP-RAPH1ΔTBS (RAPH1 aa 2-92 deleted) construct was created by inserting a custom gene block (IDT) in the EGFP-Lpd plasmid using the XhoI/HindIII sites.
DNA (Catalog # 194859-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 194859-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
GFP-RAPH1ΔTBS was a gift from Guillaume Jacquemet (Addgene plasmid # 194859 ; http://n2t.net/addgene:194859 ; RRID:Addgene_194859) -
For your References section:
Myosin-X recruits lamellipodin to filopodia tips. Popovic A, Miihkinen M, Ghimire S, Saup R, Gronloh MLB, Ball NJ, Goult BT, Ivaska J, Jacquemet G. J Cell Sci. 2023 Mar 1;136(5):jcs260574. doi: 10.1242/jcs.260574. Epub 2023 Mar 2. 10.1242/jcs.260574 PubMed 36861887
