Tom70NTD-ABHD16Acyto-mNG
(Plasmid
#195159)
-
Purposemammalian expression of outer mitochondrial membrane localized ABHD16A tagged with mNeonGreen
-
Depositing Lab
-
Depositing OrganizationUniversity of Colorado, Boulder
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 195159 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 195159-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 195159-D100 | 100 μg of DNA in Tris buffer | $585 | ||

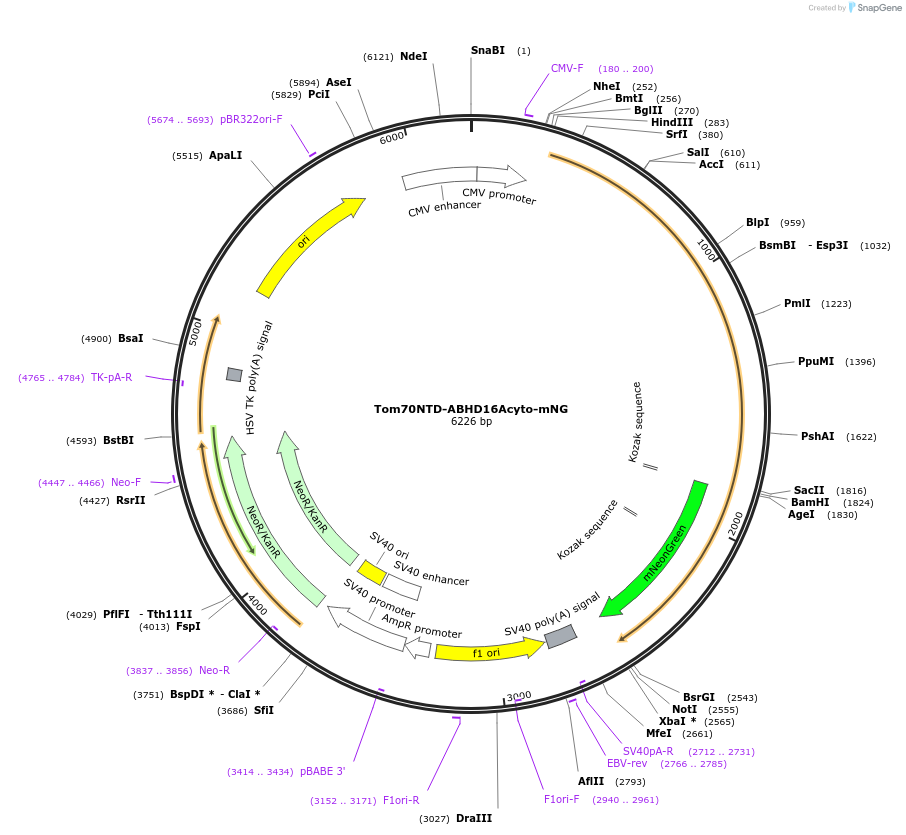

Backbone
-
Vector backboneABHD16A-mNG
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameTom70NTD
-
Alt nameMitochondrial import receptor subunit TOM70 N-terminal domain
-
SpeciesH. sapiens (human)
-
Insert Size (bp)198
-
MutationNone
-
Entrez GeneTOMM70 (a.k.a. TOMM70A, Tom70)
- Promoter CMV
-
Tag
/ Fusion Protein
- ABHD16A cytoplasmic domain and mNeonGreen (C terminal on backbone)
Cloning Information
- Cloning method Gibson Cloning
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 195159-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 195159-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Tom70NTD-ABHD16Acyto-mNG was a gift from Gia Voeltz (Addgene plasmid # 195159 ; http://n2t.net/addgene:195159 ; RRID:Addgene_195159) -
For your References section:
An ER phospholipid hydrolase drives ER-associated mitochondrial constriction for fission and fusion. Nguyen TT, Voeltz GK. Elife. 2022 Nov 30;11:e84279. doi: 10.7554/eLife.84279. 10.7554/eLife.84279 PubMed 36448541
