IRE-SunTag
(Plasmid
#196920)
-
PurposeThe 5UTR of the ferritin heavy chain mRNA was cloned upstream of the SunTag-Renilla coding sequence in the ΔIRE-SunTag reporter
-
Depositing Lab
-
Depositing OrganizationFriedrich Miescher Institute for Biomedical Research
Located in Switzerland -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 196920 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 196920-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 196920-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepSF4
-
Vector typeMammalian Expression, Bacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameRenilla luciferase
-
SpeciesRenilla reniformis
-
Insert Size (bp)930
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 196920-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 196920-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
IRE-SunTag was a gift from Jeffrey Chao (Addgene plasmid # 196920 ; http://n2t.net/addgene:196920 ; RRID:Addgene_196920) -
For your References section:
Single-molecule imaging reveals translation-dependent destabilization of mRNAs. Dave P, Roth G, Griesbach E, Mateju D, Hochstoeger T, Chao JA. Mol Cell. 2023 Feb 16;83(4):589-606.e6. doi: 10.1016/j.molcel.2023.01.013. Epub 2023 Feb 1. 10.1016/j.molcel.2023.01.013 PubMed 36731471

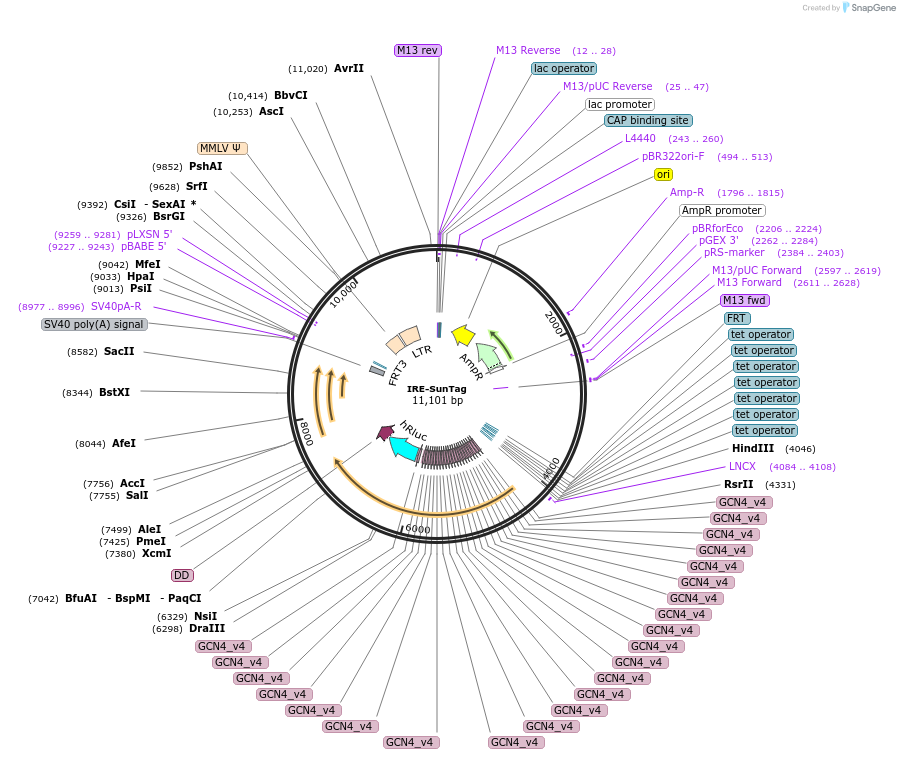

Map uploaded by the depositor.
