AAV2 ITR_phU6_gRNA scaffold-DMD sg1_phU6_gRNA scaffold-DMD sg16_pMHCK7-3x Flag-NLS-enOsCas12f1-NLS_pA_AAV2 ITR
(Plasmid
#197028)
-
PurposeAAV vector encoding a human codon-optimized enOsCas12f1 driven by MHCK7 promoter, DMD-targeting guide RNAs compatible with enOsCas12f1 driven by hU6
-
Depositing Lab
-

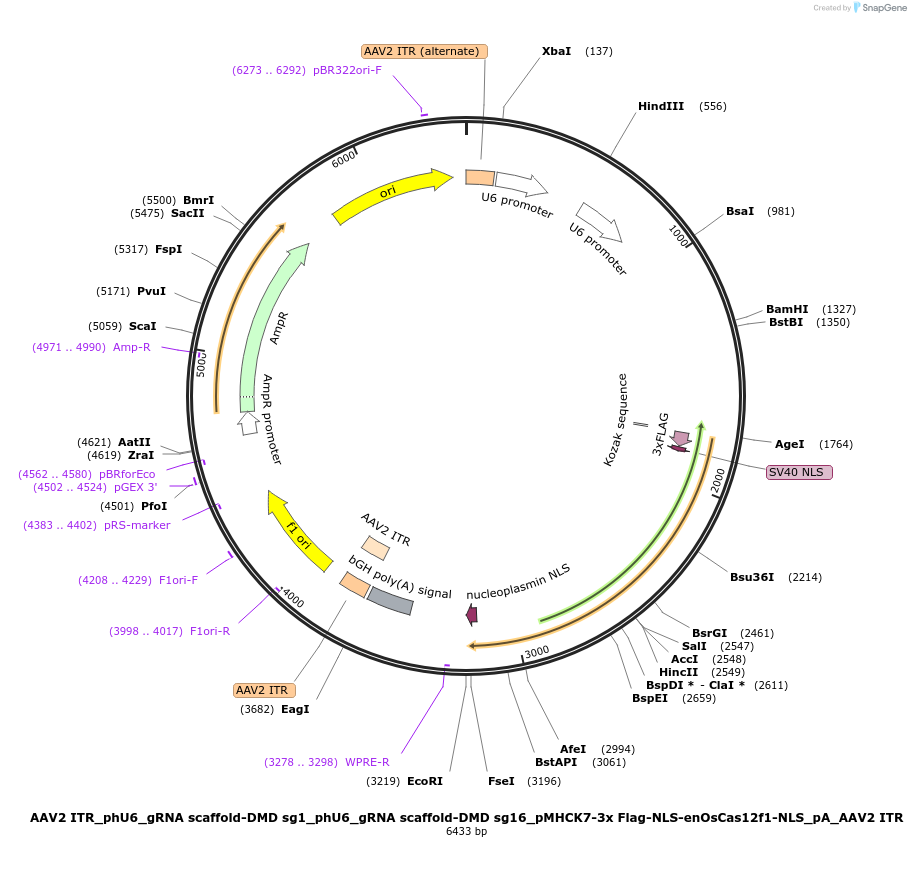

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 197028 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backboneAAV2
-
Vector typeAAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehumanized enOsCas12f1
-
SpeciesSynthetic
-
MutationD52R / T132R
- Promoter MHCK7, hU6
Cloning Information
- Cloning method Gibson Cloning
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
AAV2 ITR_phU6_gRNA scaffold-DMD sg1_phU6_gRNA scaffold-DMD sg16_pMHCK7-3x Flag-NLS-enOsCas12f1-NLS_pA_AAV2 ITR was a gift from Xiangfeng Kong (Addgene plasmid # 197028 ; http://n2t.net/addgene:197028 ; RRID:Addgene_197028) -
For your References section:
Engineered CRISPR-OsCas12f1 and RhCas12f1 with robust activities and expanded target range for genome editing. Kong X, Zhang H, Li G, Wang Z, Kong X, Wang L, Xue M, Zhang W, Wang Y, Lin J, Zhou J, Shen X, Wei Y, Zhong N, Bai W, Yuan Y, Shi L, Zhou Y, Yang H. Nat Commun. 2023 Apr 11;14(1):2046. doi: 10.1038/s41467-023-37829-7. 10.1038/s41467-023-37829-7 PubMed 37041195
