miniCRISPRoff-v1
(Plasmid
#197030)
-

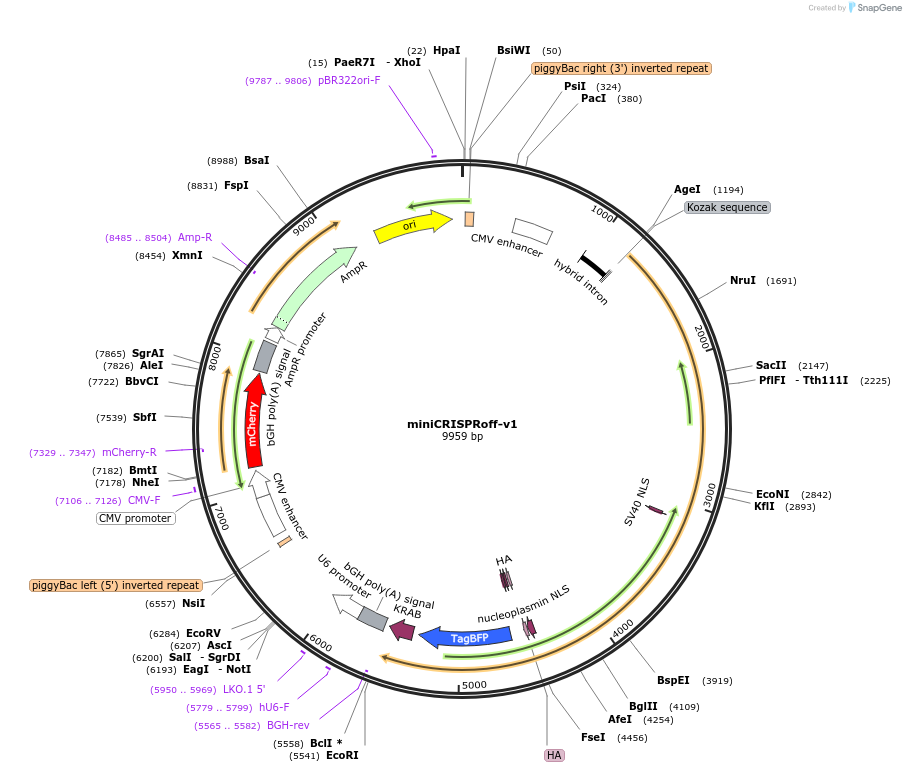

PurposeVector encoding a human codon-optimized miniCRISPRoff-v1 driven by CBh promoter, guide RNAs compatible with enOsCas12f1 driven by hU6, and mCherry driven by CMV promoter
-
Depositing Lab
-
Depositing OrganizationHuidaGene Therapeutics Co., Ltd.
Located in China -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 197030 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 197030-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 197030-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepiggyBac-CBh
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehumanized miniCRISRPoff-v1
-
SpeciesSynthetic
-
MutationD52R / T132R / D228A / D406A
- Promoter CBh, CMV, hU6
Cloning Information
- Cloning method Gibson Cloning
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 197030-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 197030-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
miniCRISPRoff-v1 was a gift from Xiangfeng Kong (Addgene plasmid # 197030 ; http://n2t.net/addgene:197030 ; RRID:Addgene_197030) -
For your References section:
Engineered CRISPR-OsCas12f1 and RhCas12f1 with robust activities and expanded target range for genome editing. Kong X, Zhang H, Li G, Wang Z, Kong X, Wang L, Xue M, Zhang W, Wang Y, Lin J, Zhou J, Shen X, Wei Y, Zhong N, Bai W, Yuan Y, Shi L, Zhou Y, Yang H. Nat Commun. 2023 Apr 11;14(1):2046. doi: 10.1038/s41467-023-37829-7. 10.1038/s41467-023-37829-7 PubMed 37041195
