trLATmEos3.2
(Plasmid
#203745)
-
PurposeEncodes the transmembrane domain from human LAT with mEos3.2 fused on the C terminus. Used as a fluorescent plasma membrane probe.
-
Depositing Lab
-
Depositing OrganizationUniversity of Michigan
Located in United States of America -

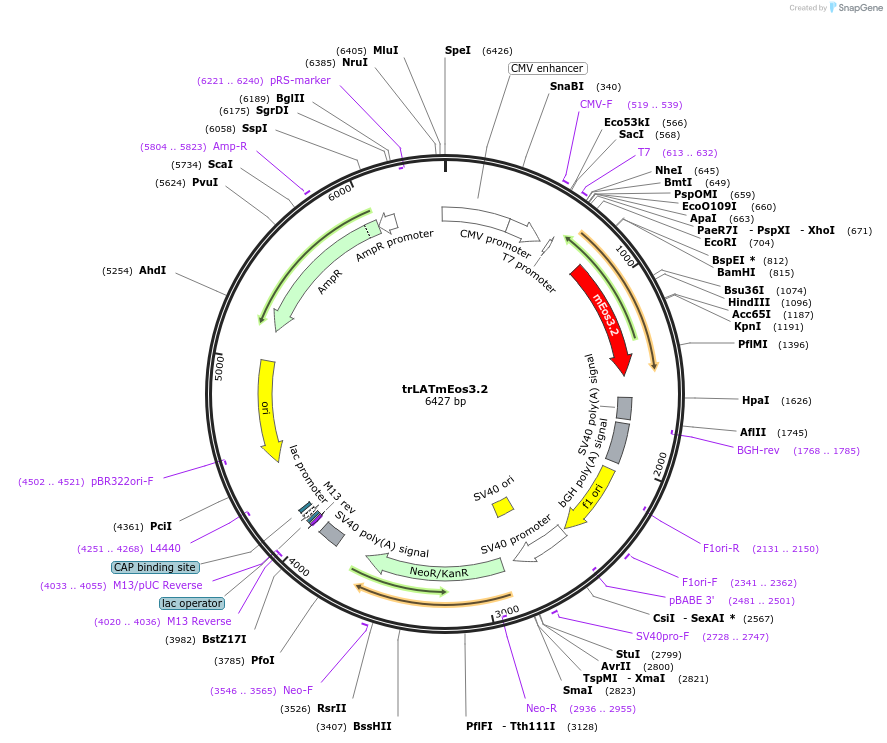

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 203745 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 203745-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 203745-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonetrLAT-mRFP
-
Backbone manufacturerIlya Levental lab
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin and Kanamycin, 100 & 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nametrLAT
-
SpeciesH. sapiens (human)
-
Entrez GeneLAT (a.k.a. IMD52, LAT1, pp36)
-
Tag
/ Fusion Protein
- mEos3.2 (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Unknown (unknown if destroyed)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byInsert DNA courtesy of the Ilya Levental lab
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 203745-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 203745-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
trLATmEos3.2 was a gift from Sarah Veatch (Addgene plasmid # 203745 ; http://n2t.net/addgene:203745 ; RRID:Addgene_203745) -
For your References section:
Membrane phase separation drives responsive assembly of receptor signaling domains. Shelby SA, Castello-Serrano I, Wisser KC, Levental I, Veatch SL. Nat Chem Biol. 2023 Jun;19(6):750-758. doi: 10.1038/s41589-023-01268-8. Epub 2023 Mar 30. 10.1038/s41589-023-01268-8 PubMed 36997644
