pAcCas12nHS_ABE_D3_empty
(Plasmid
#203809)
-

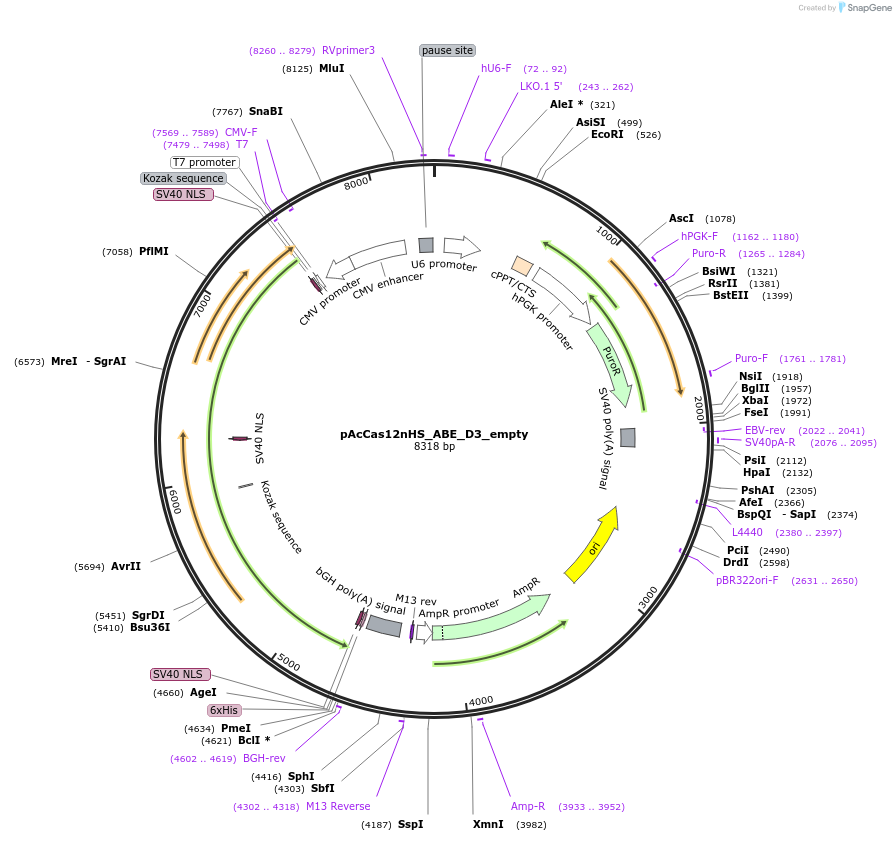

PurposePlasmid containing a CMV-driven NLS-dAcCas12n(D240)-ABE-Design3-NLS cassette and a U6-driven sgRNA_V6 cassette(containing BsaI sites for spacer insertion).
-
Depositing Lab
-
Depositing OrganizationShanghaiTech University
Located in China -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 203809 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 203809-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 203809-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonePuc
-
Vector typeCRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameABE_D3
-
SpeciesSynthetic
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 203809-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 203809-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAcCas12nHS_ABE_D3_empty was a gift from Quanjiang Ji (Addgene plasmid # 203809 ; http://n2t.net/addgene:203809 ; RRID:Addgene_203809) -
For your References section:
Cas12n nucleases, early evolutionary intermediates of type V CRISPR, comprise a distinct family of miniature genome editors. Chen W, Ma J, Wu Z, Wang Z, Zhang H, Fu W, Pan D, Shi J, Ji Q. Mol Cell. 2023 Jun 27:S1097-2765(23)00463-X. doi: 10.1016/j.molcel.2023.06.014. 10.1016/j.molcel.2023.06.014 PubMed 37402371
