PurposeCMV driven co-expression of split HaloTag FKBP- and FRB-fusions (Lyn11-EGFP-FKBP-cpHalo∆ and Hpep1-FRB-mScarlett) in mammalian cell lines
-
Depositing Lab
-
Depositing OrganizationMax Planck Institute for Medical Research
Located in Germany -

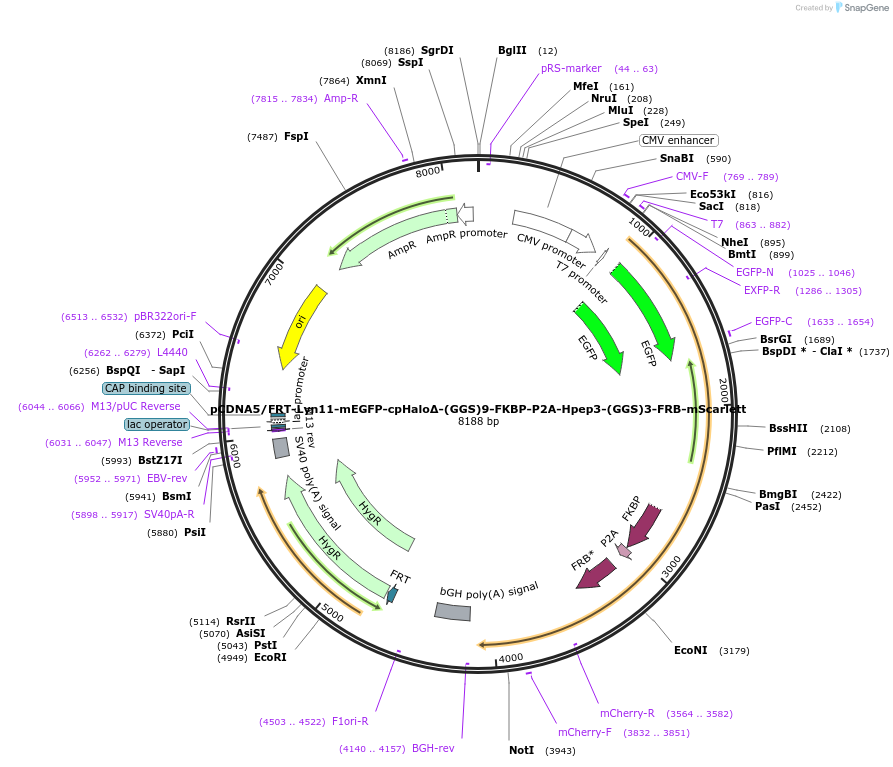

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 205703 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 205703-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 205703-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA5/FRT
- Backbone size w/o insert (bp) 5000
-
Vector typeMammalian Expression
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameLyn11-EGFP-FKBP-cpHalo∆-P2A-Hpep1-FRB-mScarlett
-
SpeciesSynthetic
-
Insert Size (bp)3100
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer N/A
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 205703-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 205703-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCDNA5/FRT-Lyn11-mEGFP-cpHalo∆-(GGS)9-FKBP-P2A-Hpep3-(GGS)3-FRB-mScarlett was a gift from Kai Johnsson (Addgene plasmid # 205703 ; http://n2t.net/addgene:205703 ; RRID:Addgene_205703) -
For your References section:
Recording physiological history of cells with chemical labeling. Huppertz MC, Wilhelm J, Grenier V, Schneider MW, Falt T, Porzberg N, Hausmann D, Hoffmann DC, Hai L, Tarnawski M, Pino G, Slanchev K, Kolb I, Acuna C, Fenk LM, Baier H, Hiblot J, Johnsson K. Science. 2024 Feb 23;383(6685):890-897. doi: 10.1126/science.adg0812. Epub 2024 Feb 22. 10.1126/science.adg0812 PubMed 38386755
